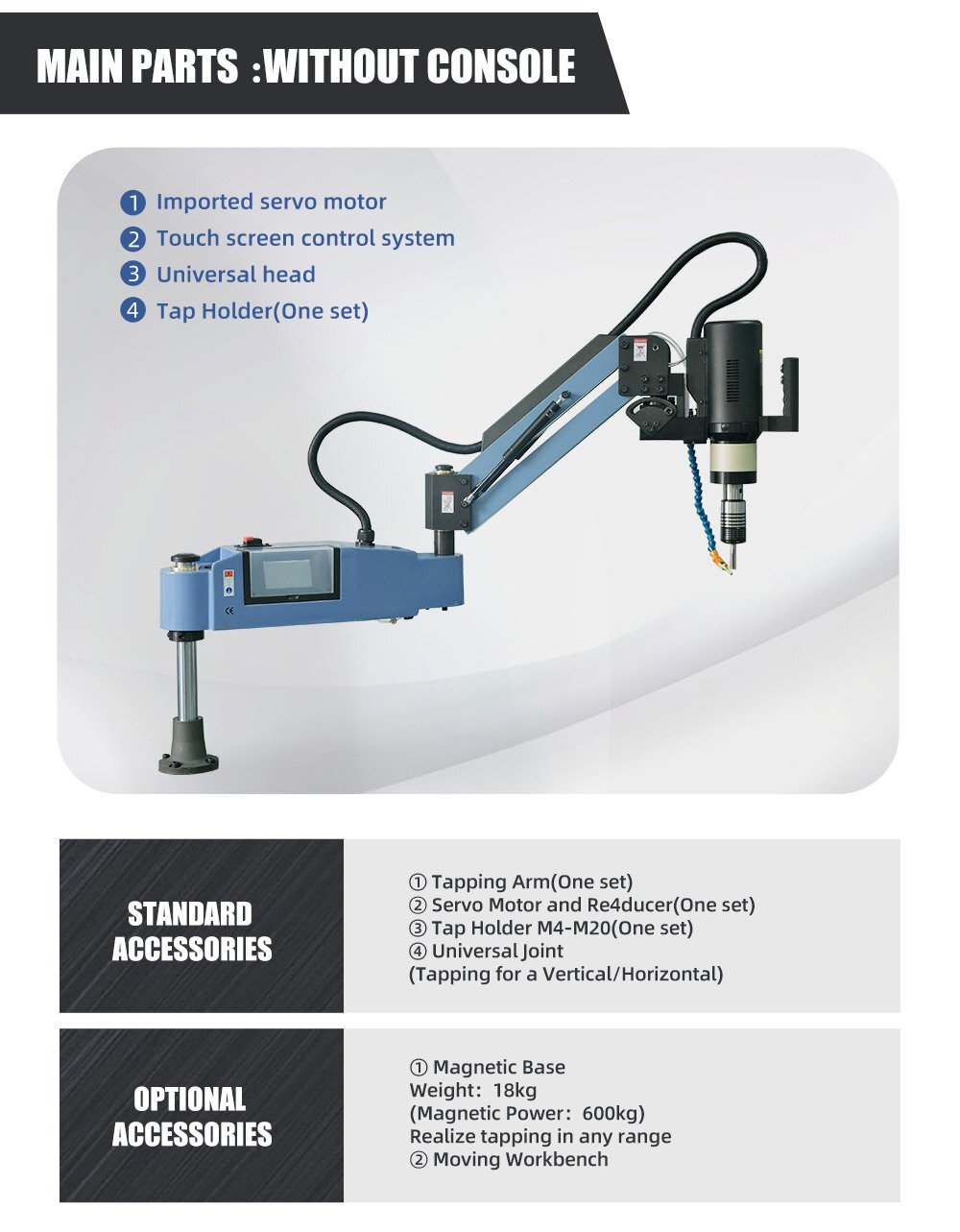

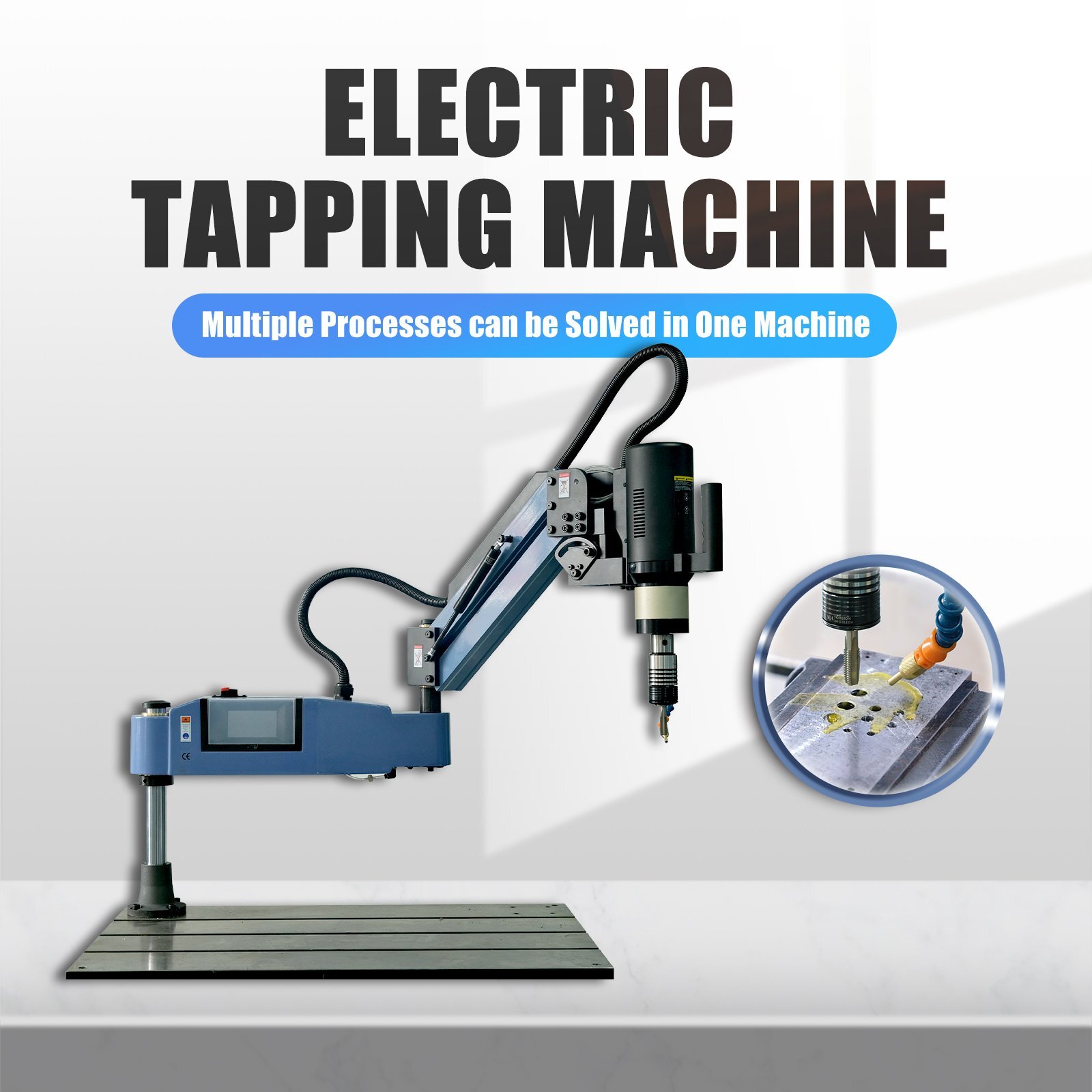

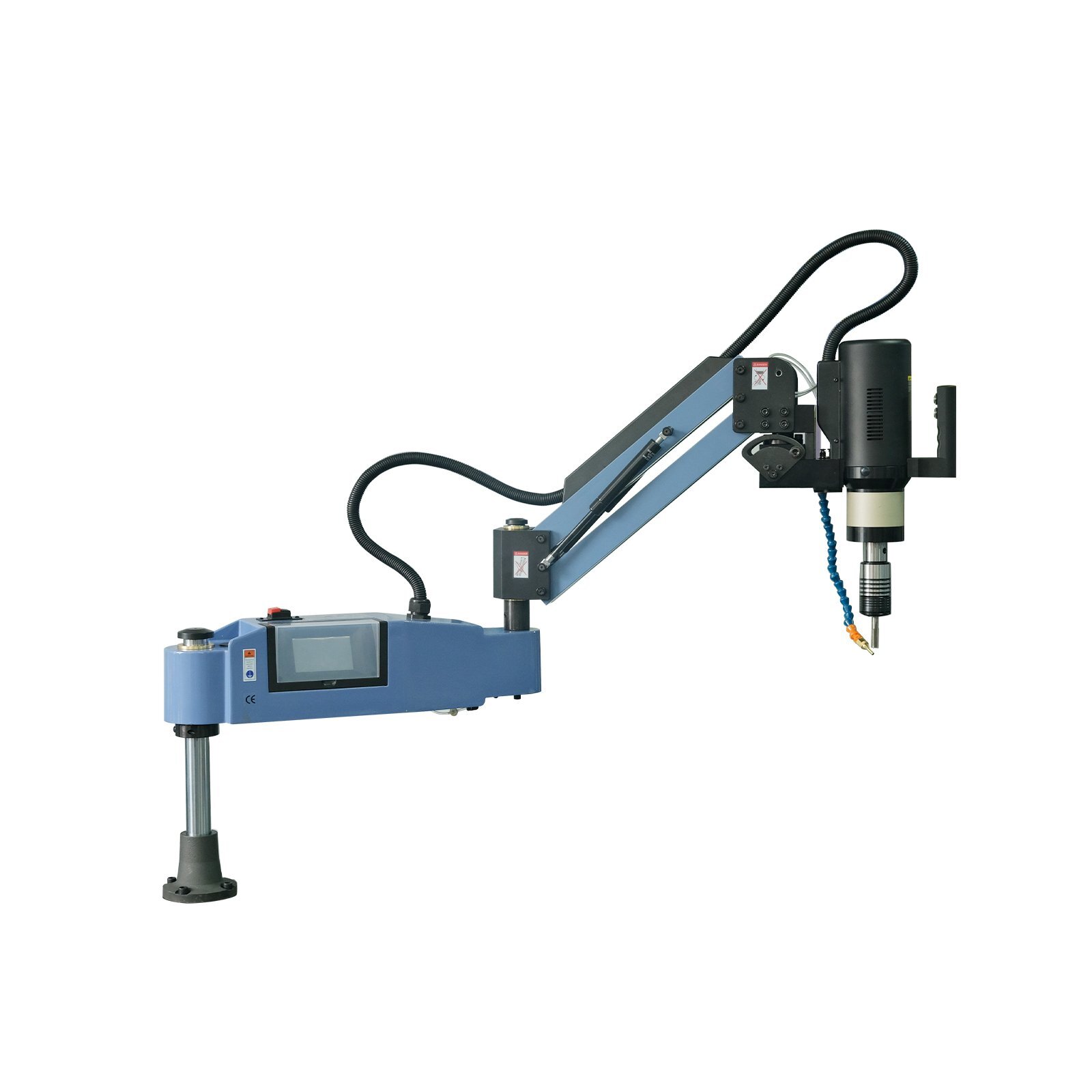

SFX M48R Electric Tapping Machine with Auto Oil Spray For Threading, Drilling, And Tapping, Electric Tapping Arm With 360° Universal Rotation

SFX M48R Auto Oil Spray Electric Tapping Machine Used For Threading, Drilling, And Tapping, Electric Tapping Arm With 360° Universal Rotation

The Oil Sprayer Automatic Electric Tapping Machine is a versatile and efficient tool designed for precise tapping operations across a broad range of materials. With an auto oil sprayer, this electric tapping machine stands out for its enhanced performance and extended tool life.

Specifications:

Model： SFX-M48R

Customized： Yes

Power Type： AC Power

Rated Power：1200W

Supply Voltage：220V/110V

Spindle Rated Speed：0-125r/min

Tapping Range： M12-M48

Working Range: Horizontal: 1180mm / Vertical: 400mm adjustable

Universal Tapping: Yes

Oiling Function: Yes

Lifting Function: No

Features and Benefits of the electric tapping machine:

1. Precision Tapping: The electric tapping machine is specifically designed for accurate and precise tapping, ensuring the creation of high-quality threads in a variety of materials.

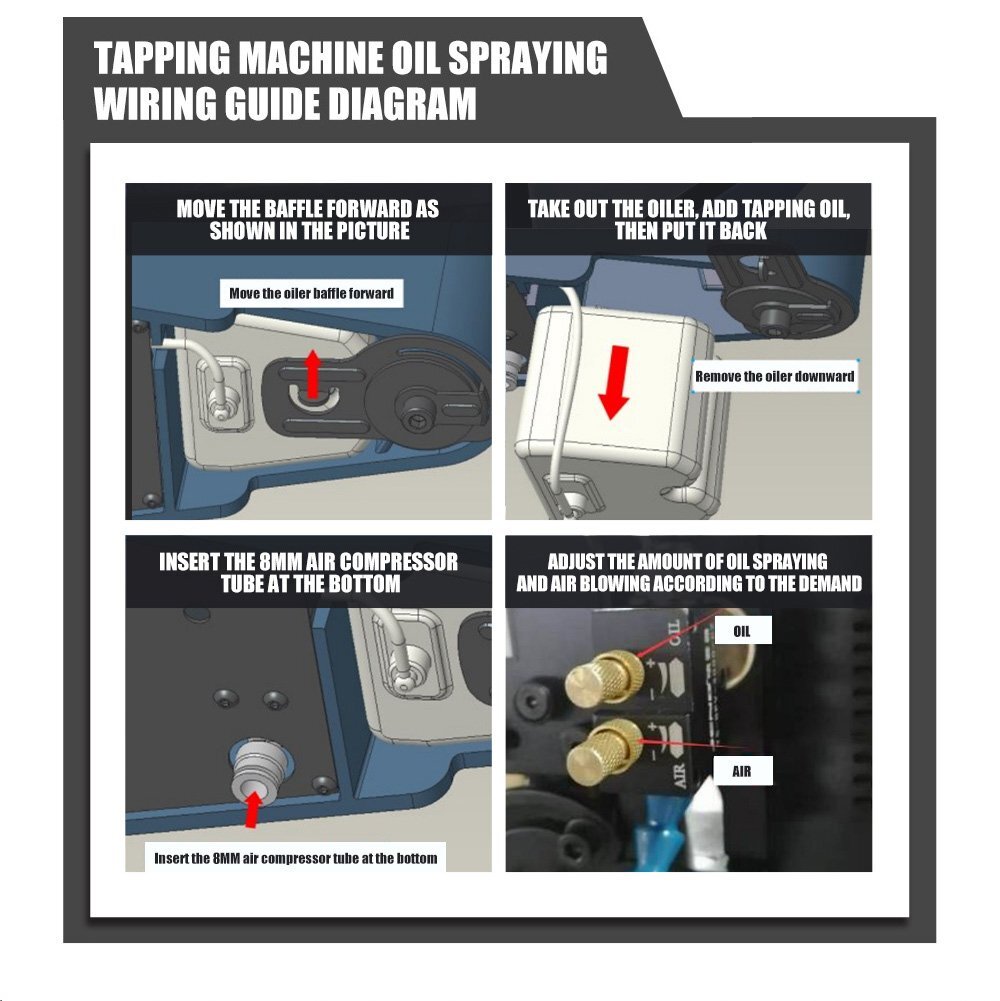

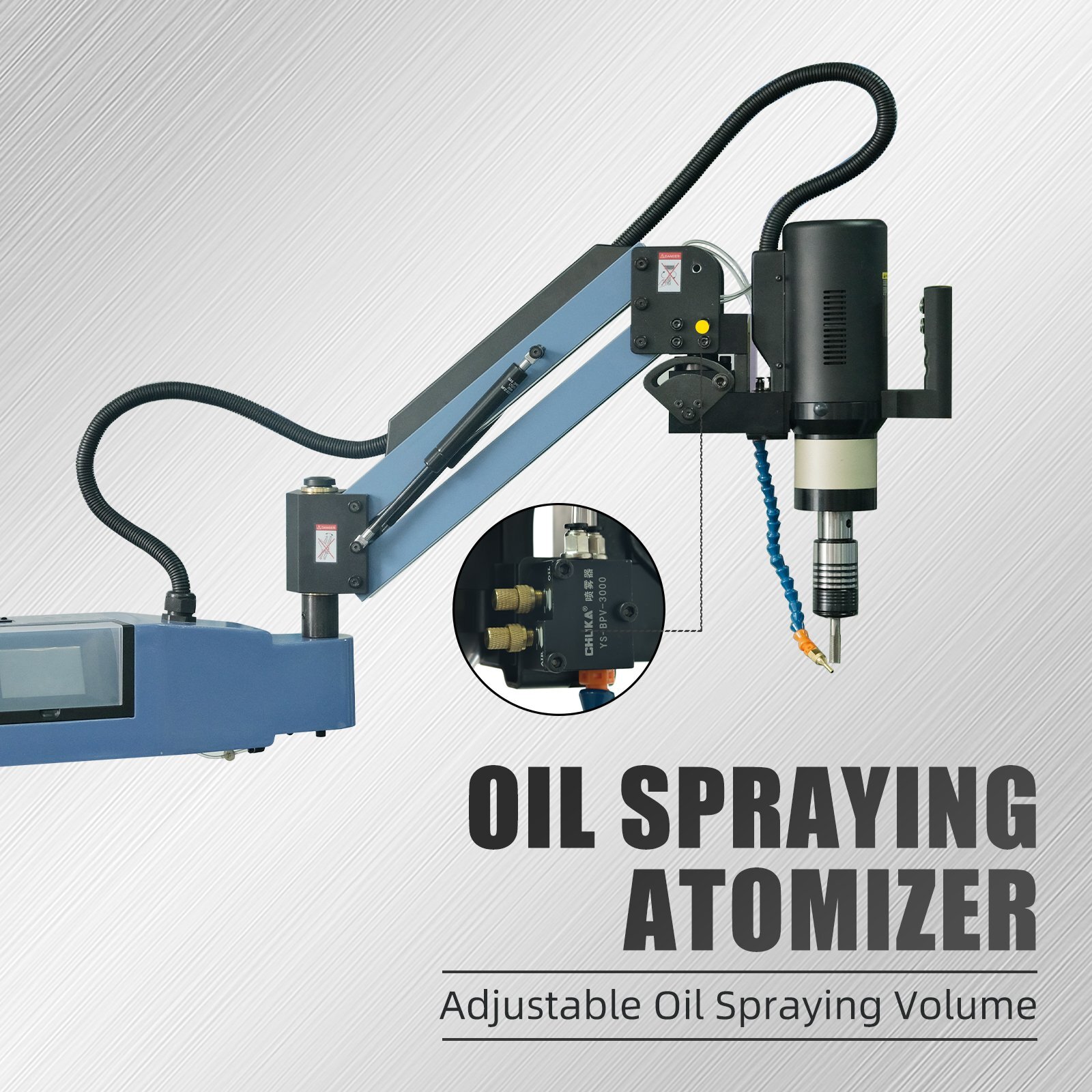

2. Auto Oil Sprayer: The built-in automatic oil sprayer system lubricates the tapping tool during operation. This not only reduces friction, heat, and wear on the tool but also extends its lifespan.

3. User-Friendly Operation: The electric tapping machine is designed for ease of use. The automated oil spraying feature, coupled with electric power, minimizes manual intervention, making it suitable for both experienced machinists and those new to tapping operations.

4. Versatile Tapping Range: The machine accommodates a wide tapping range from M12 to M48, making it suitable for various threading needs in different projects.

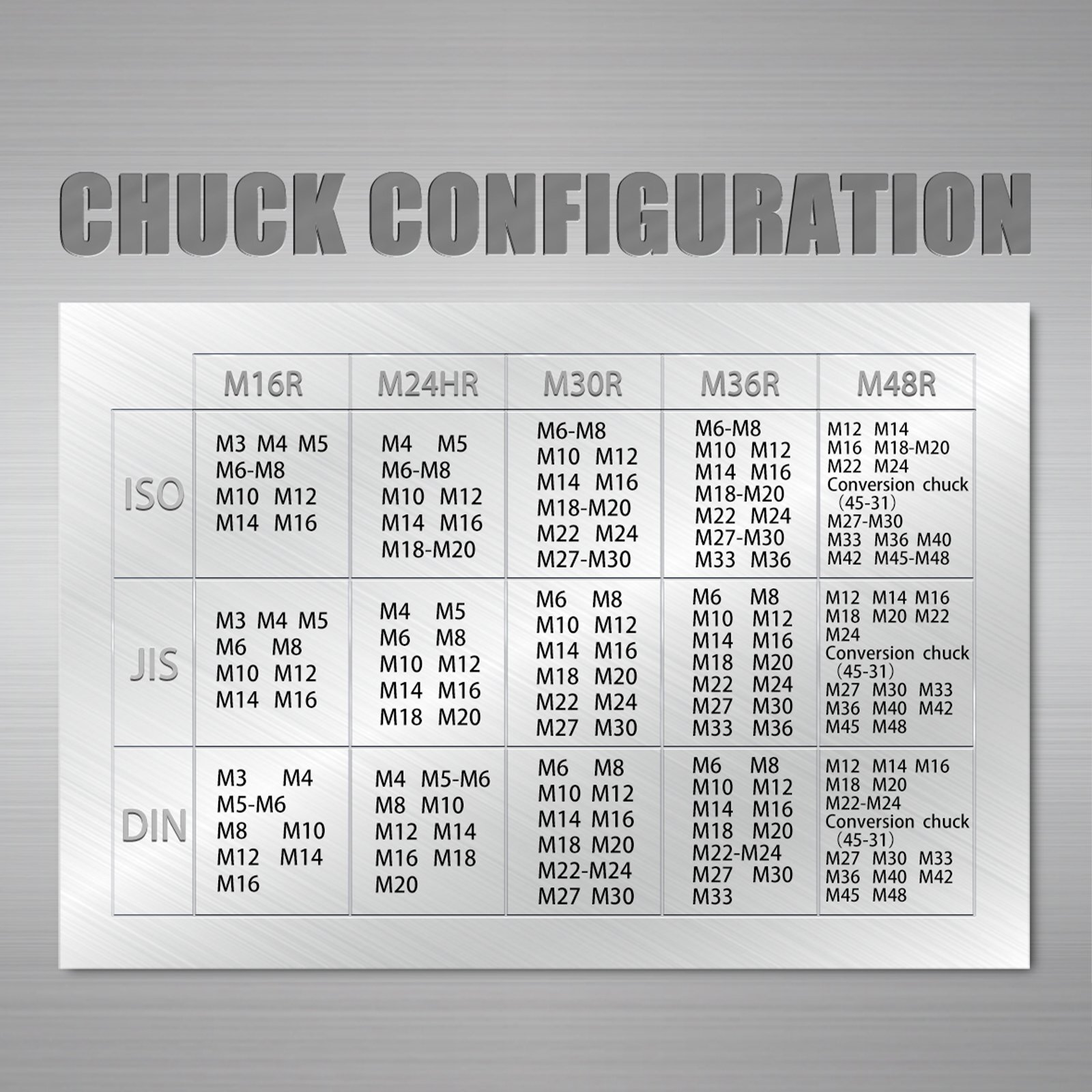

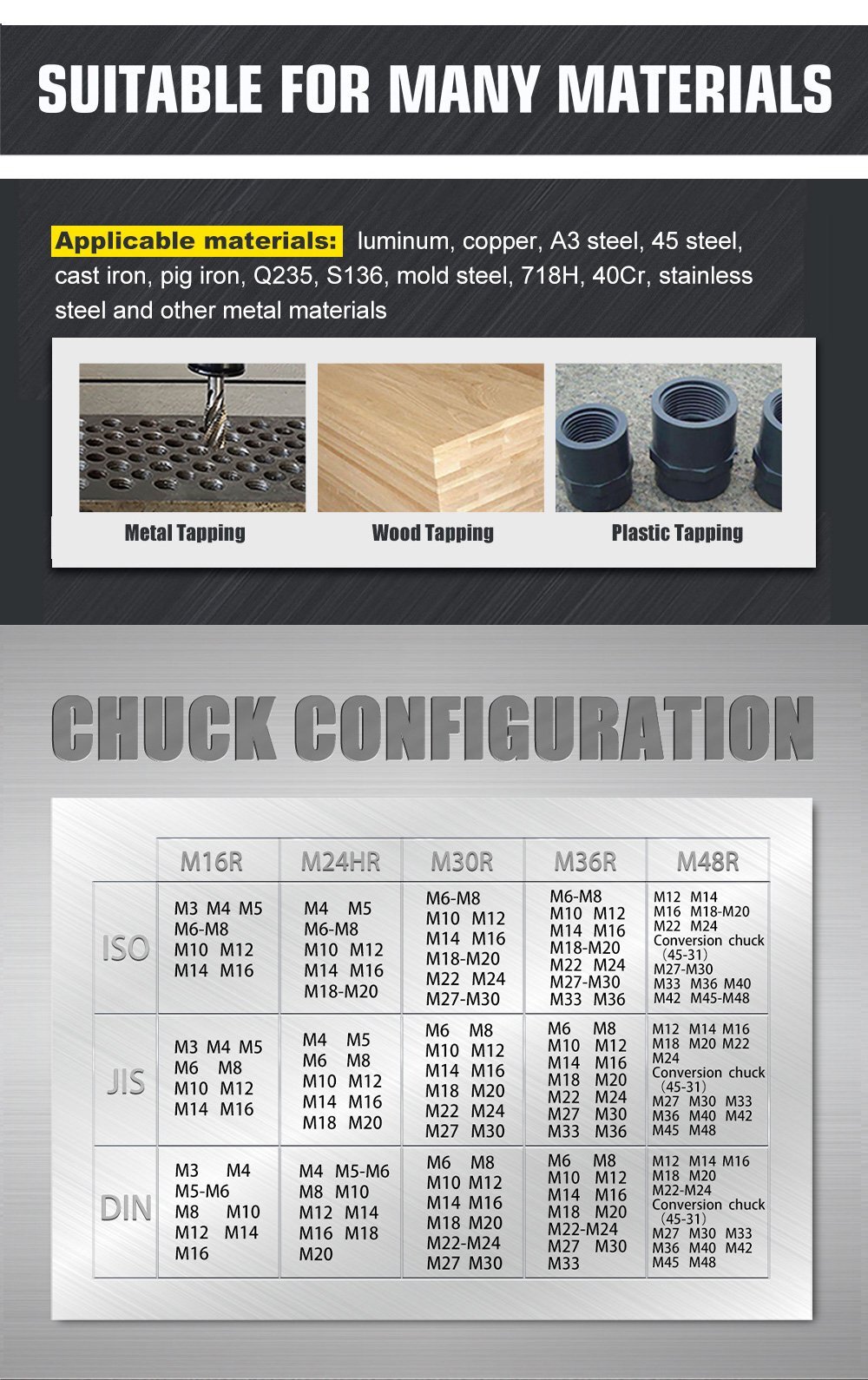

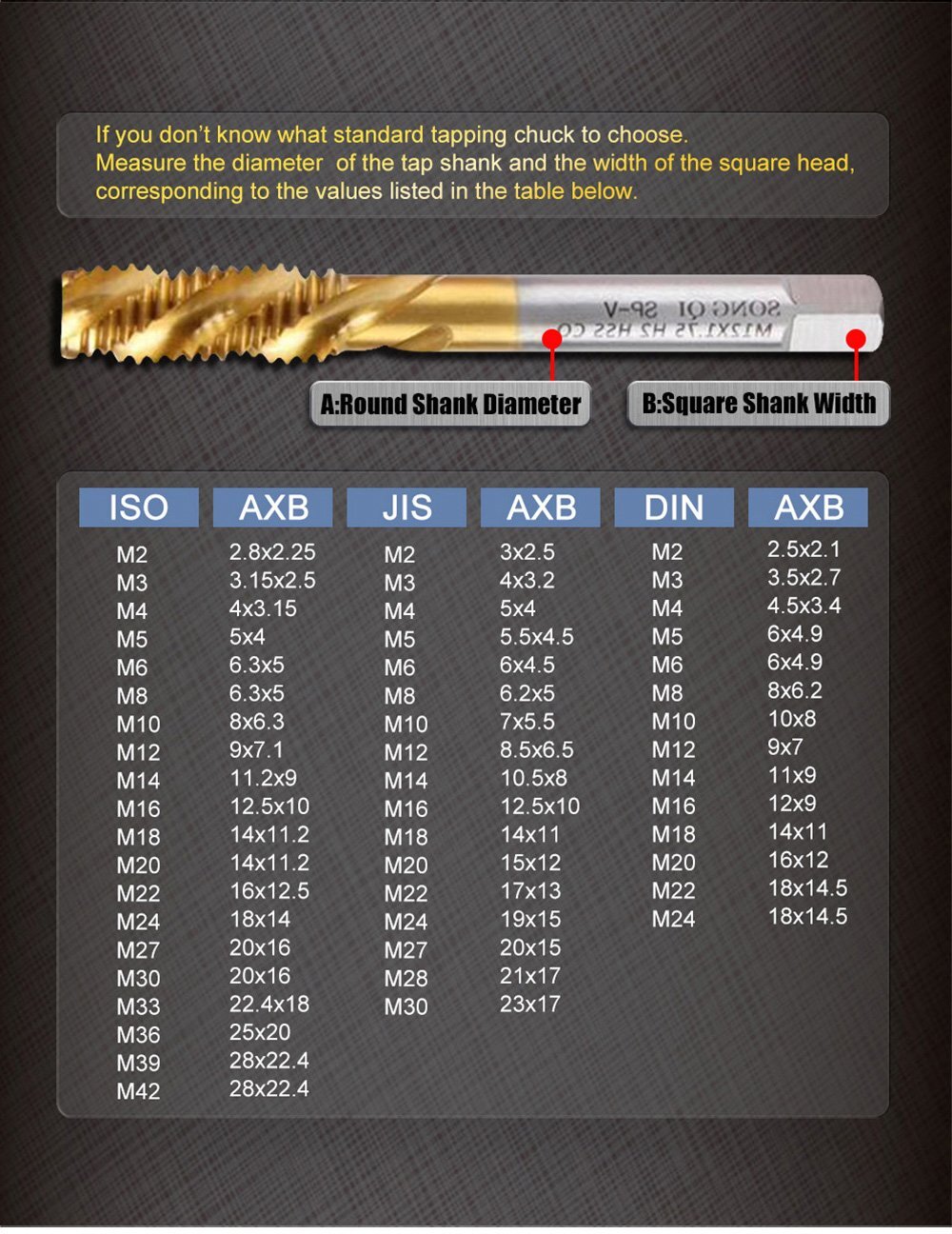

Tapping Chuck configuration:

ISO Standard: M12  M14  M16  M18-M20  M22  M24  Conversion Chuck(45-31)  M27-M30  M33  M36  M40  M42  M45-M48 (13PCS)

JIS Standard: M12  M14  M16  M18  M20  M22  M24  Conversion Chuck(45-31)  M27  M30  M33  M36  M40  M42  M45  M48(16PCS)

DIN Standard: M12  M14  M16  M18  M20  M22-M24 Conversion Chuck(45-31)  M27  M30 M33  M36  M40  M42  M45  M48(15PCS)

Note: The ISO standard chucks will be sent by default. If you need JIS or DIN standards, please leave a message to replace them.

Service

Free shipping, door-to-door service

After-sale support, one-year warranty

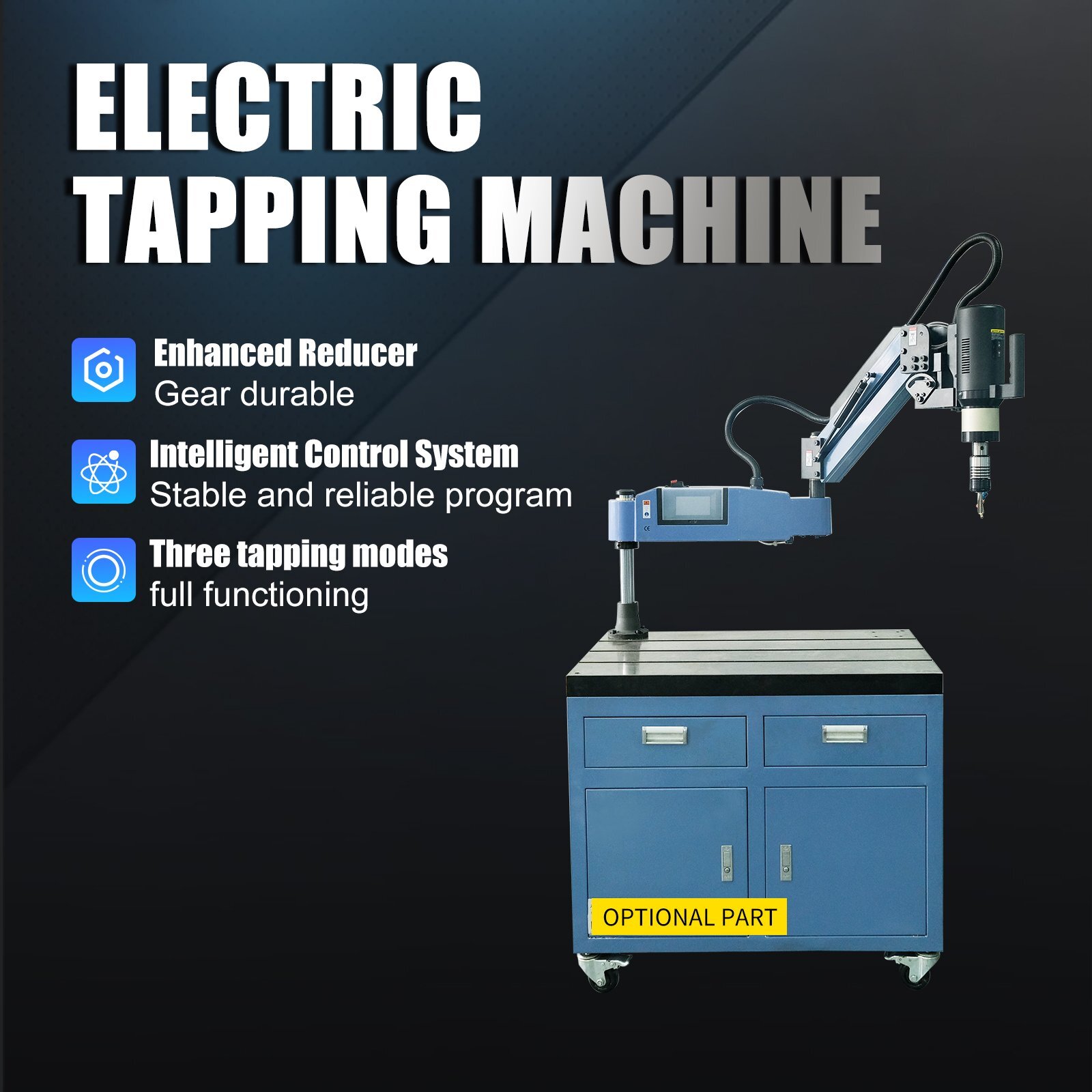

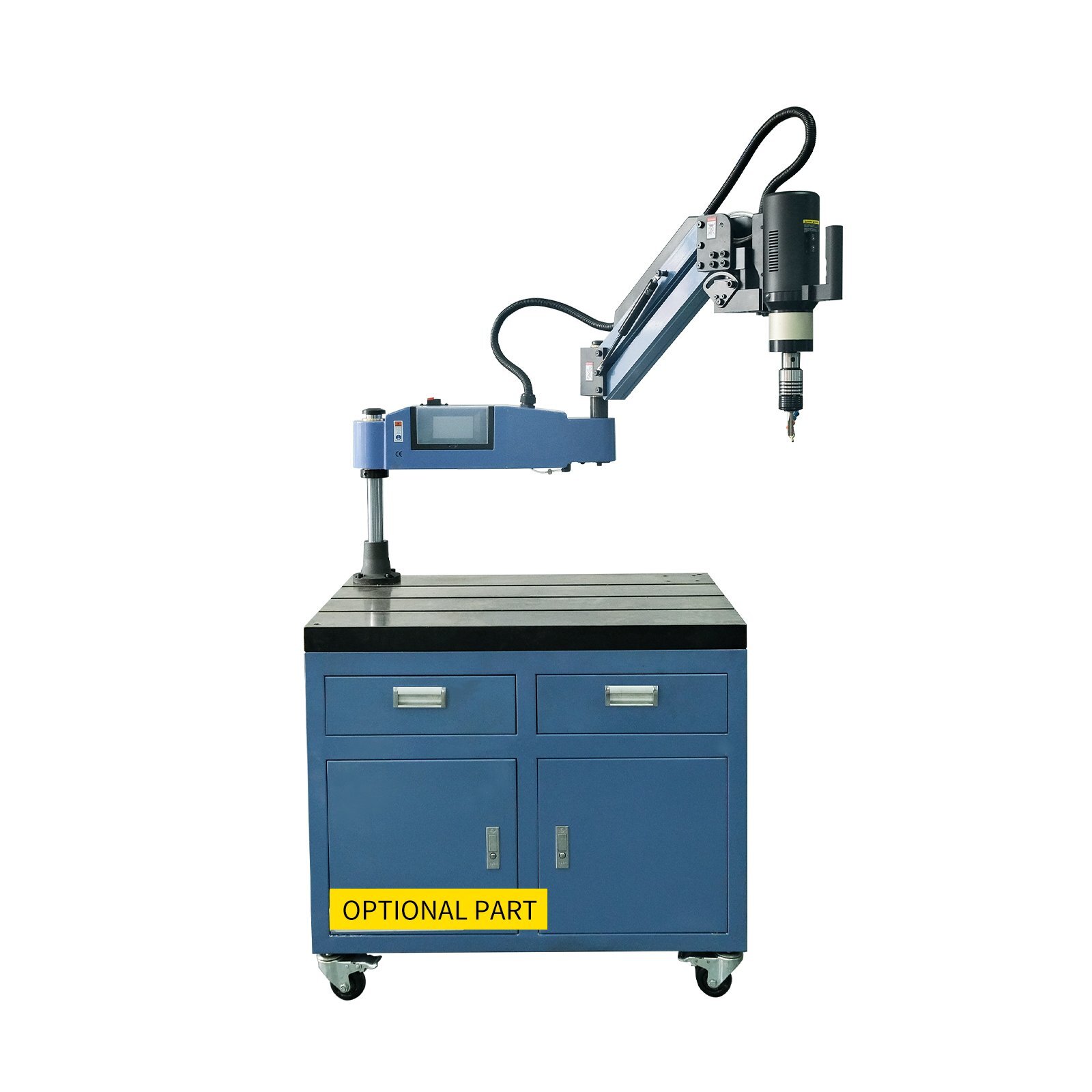

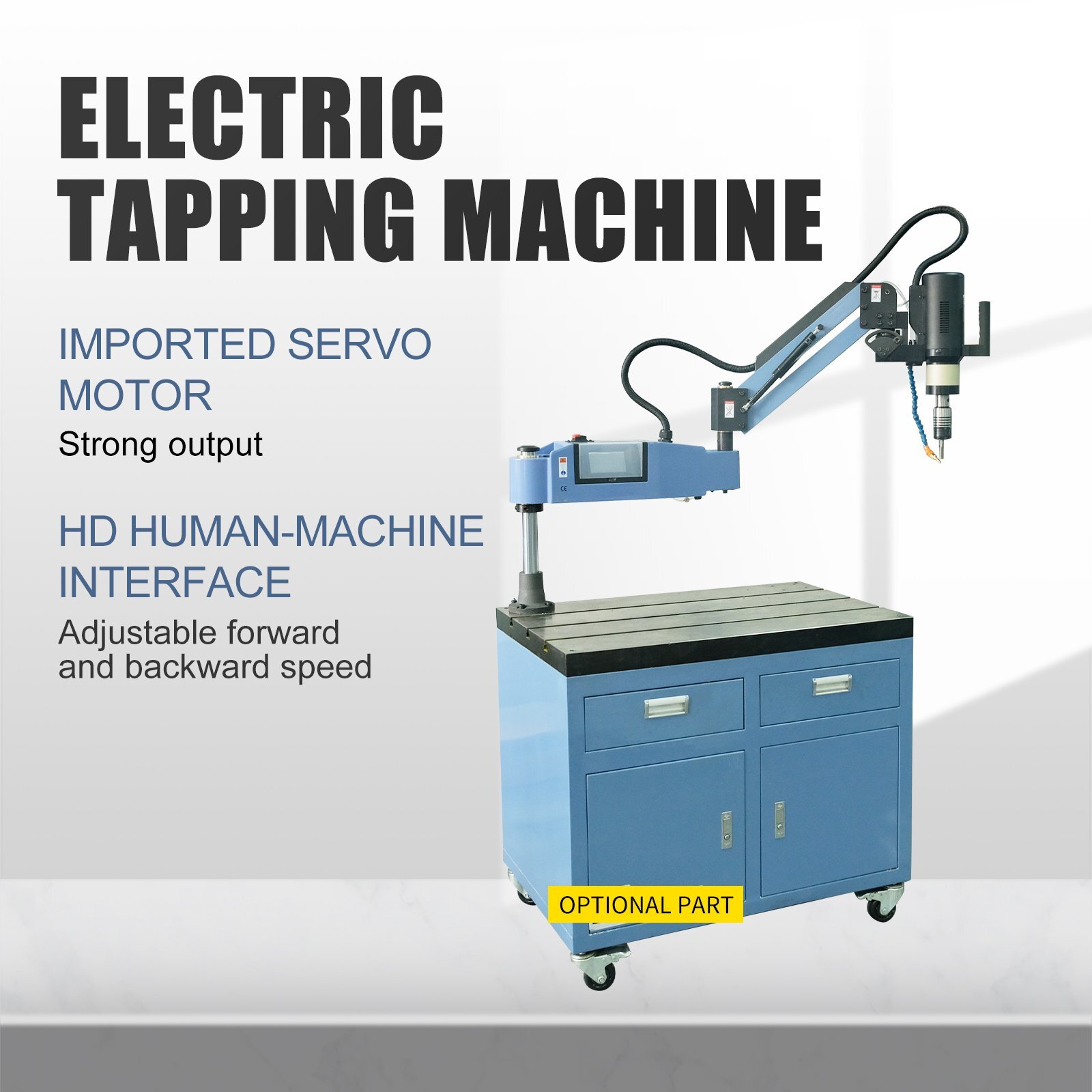

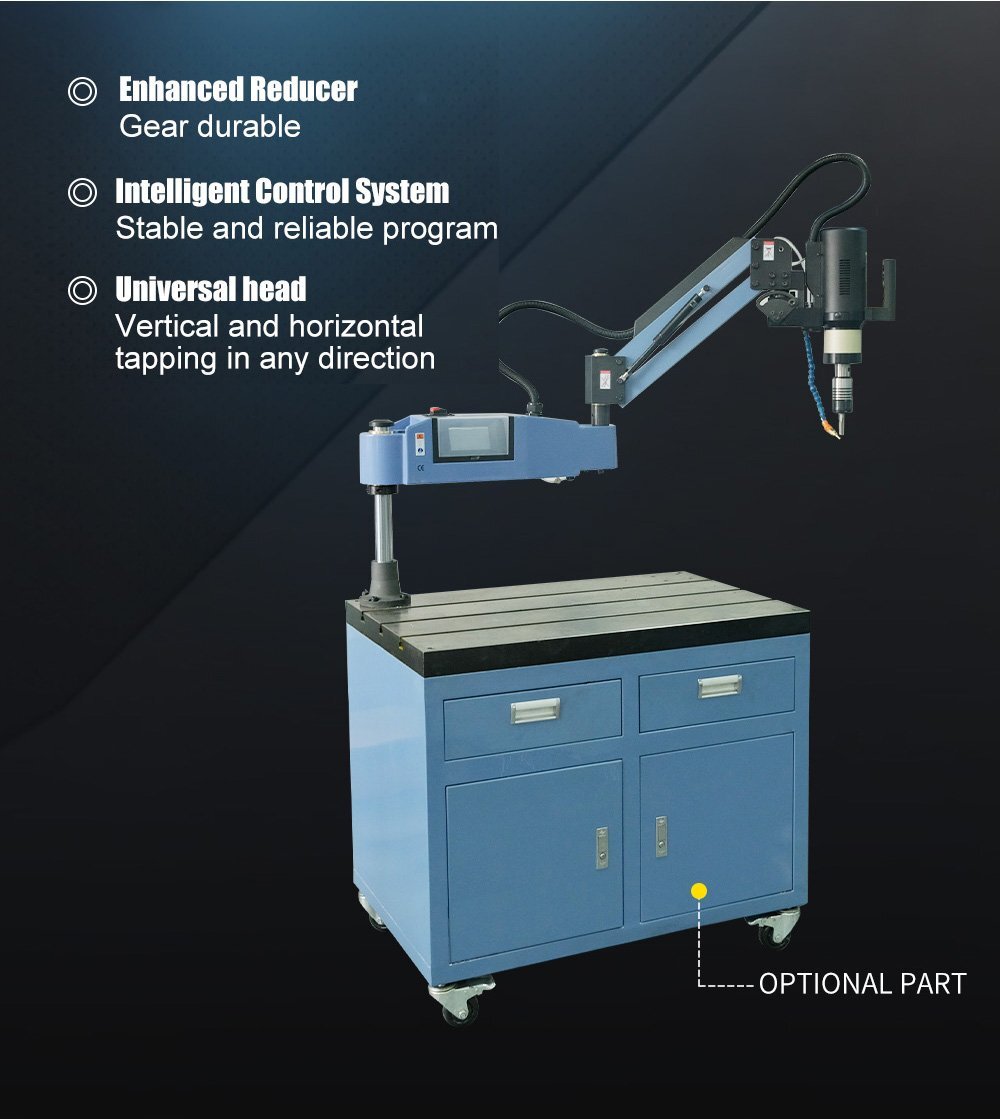

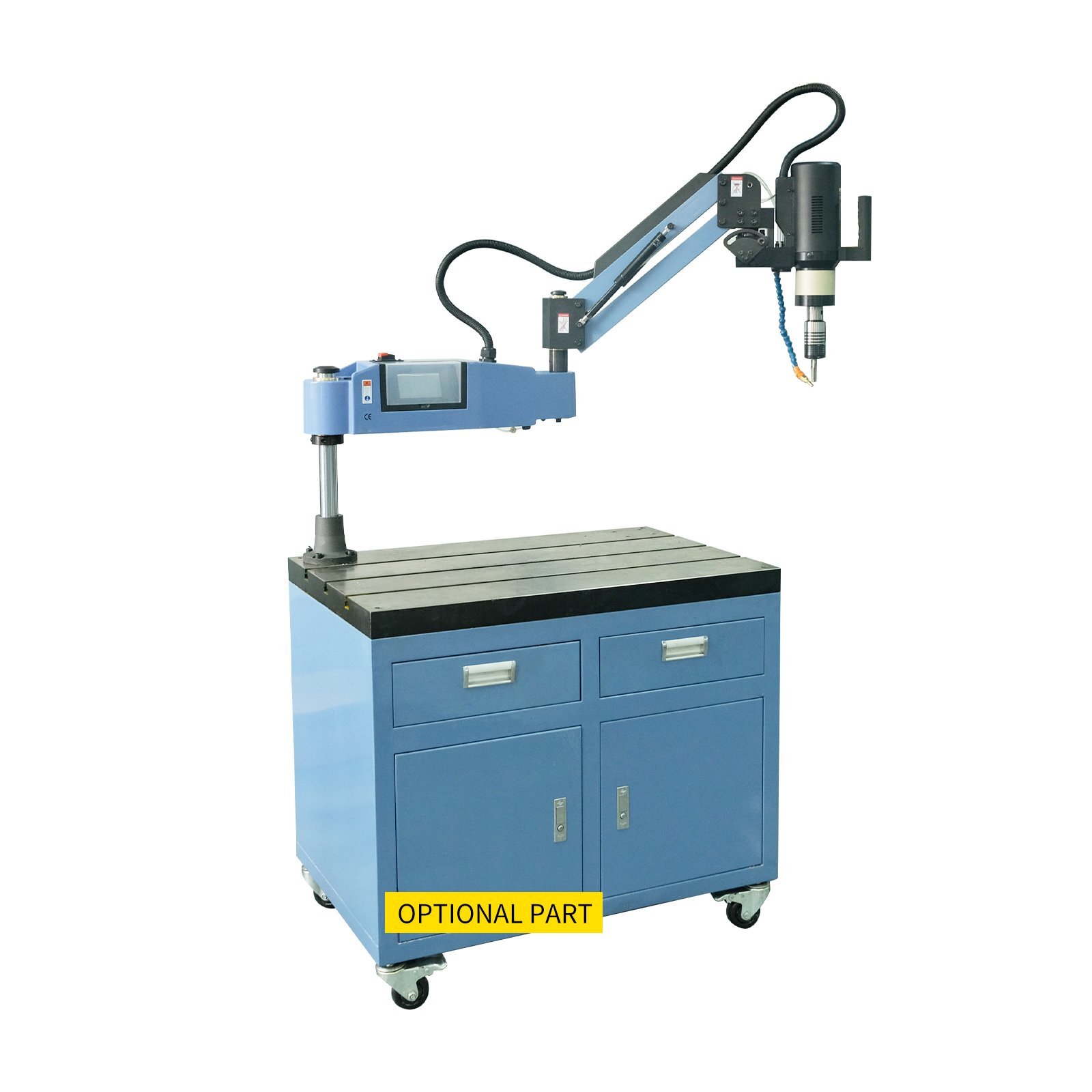

Note: the workbench is not included, you can buy it separately from the following link: Workbenck for holding electric tapping machine
