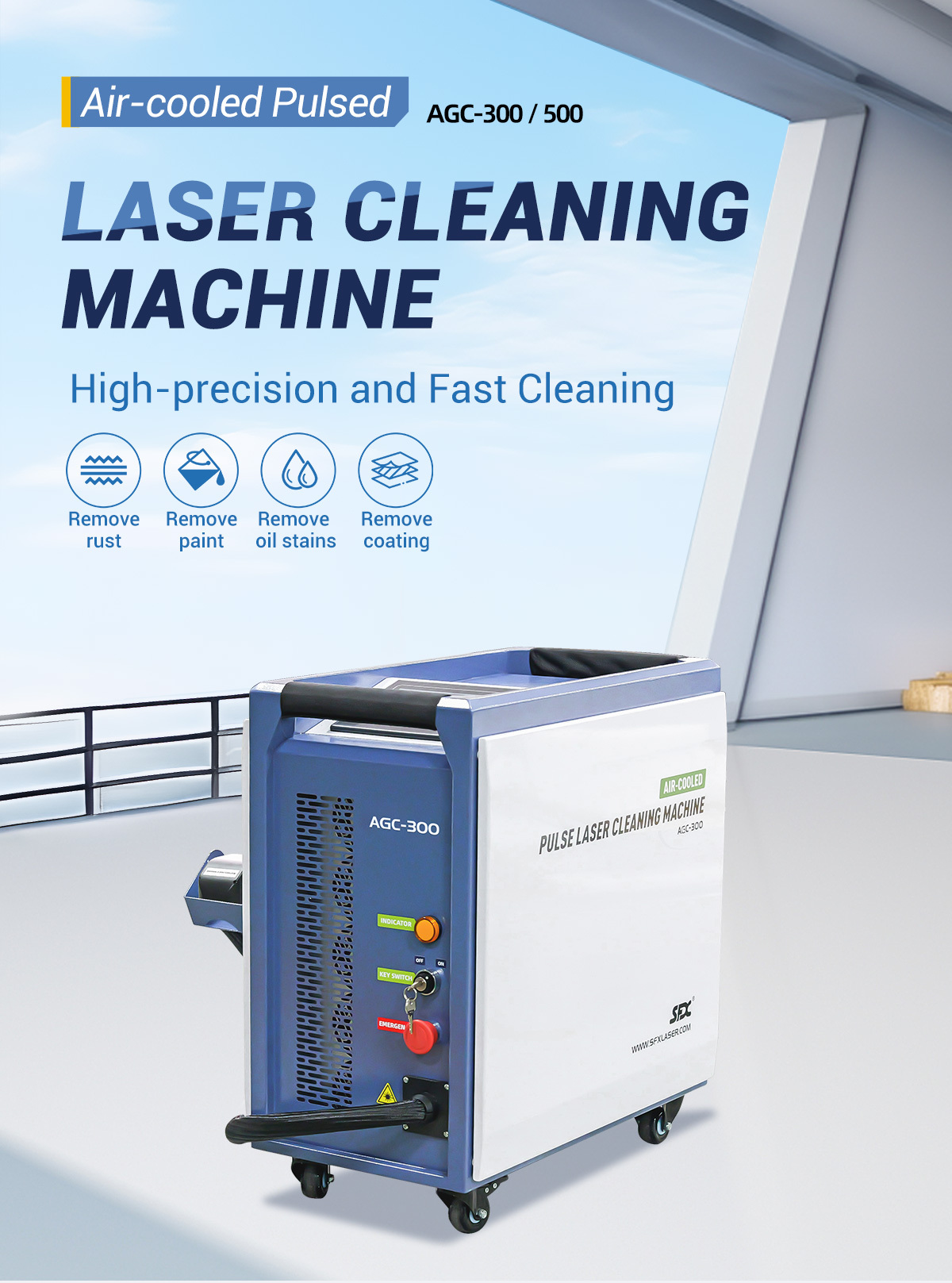

SFX Laser 500W Air-cooled Pulse Laser Cleaning Machine Single Mode Coating Rust Paint Oil Removal

SFX Laser Air-cooled 500W Pulse Laser Cleaner Single Mode Coating Rust Paint Oil Removal Air-cooling Laser Cleaner

SFX 500W Air-cooling pulsed laser cleaning machine has passed multiple rigorous tests in the industry for reliable quality, it is stable and durable for use. The air-cooled design simplifies operation by eliminating the need for an external cooling system, reducing both setup complexity and maintenance costs. This makes it adaptable to various operational environments.

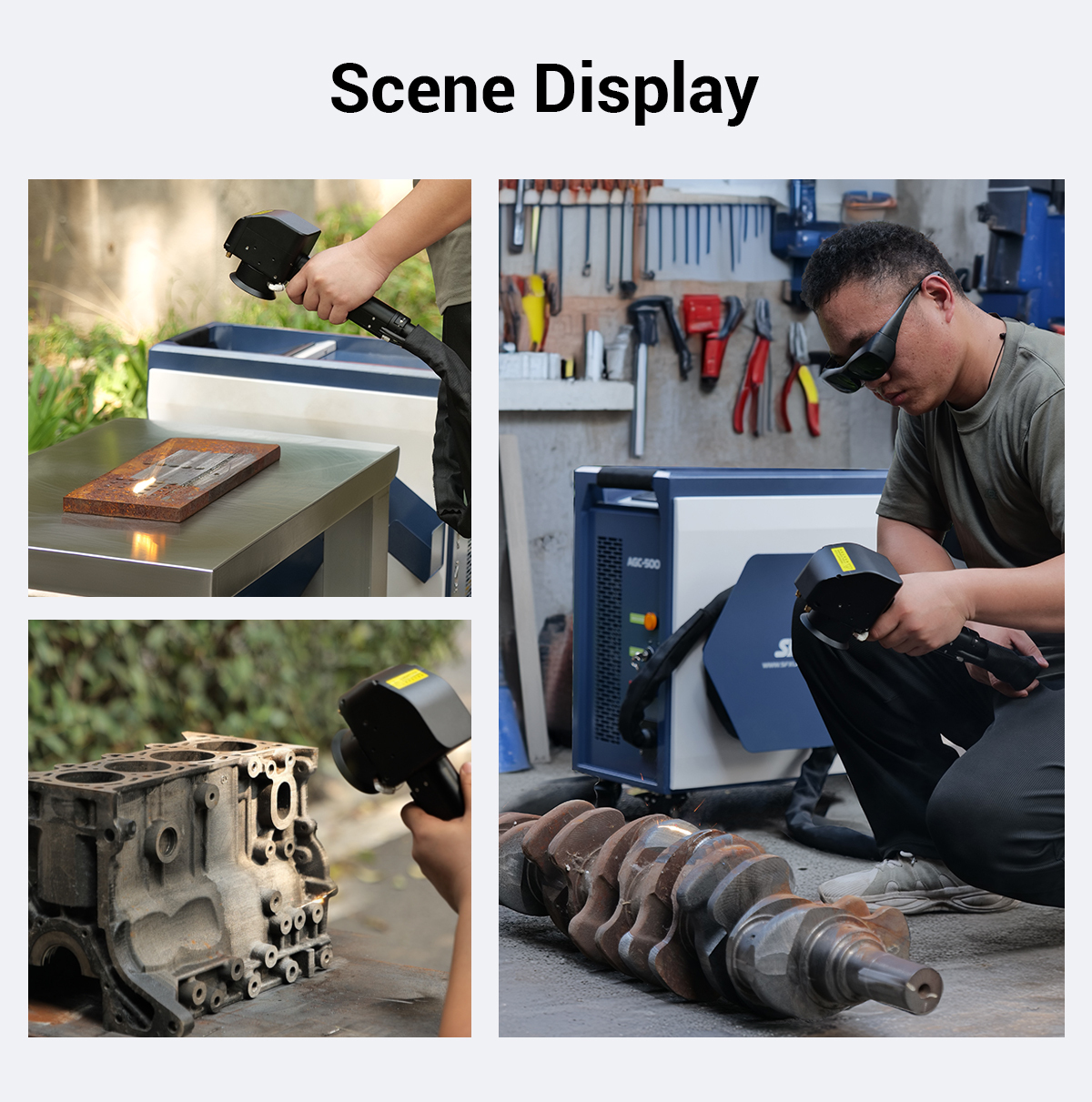

The SFX 500W  pulse laser source can be used for various applications, including rust removal, oil removal, paint removal, coating removal, oxidation layer removal, plating removal, adhesive layer removal, cultural relic restoration, etc. This 500W pulse SFX laser cleaner can be widely used in aerospace, mold manufacturing, automotive, food processing, tire hub production, pharmaceuticals, chemicals, and other industries.

Pulse Laser Cleaning Machine 500w advantages:

1. The 500W pulse laser cleaning machine overcomes the disadvantages of traditional cleaning, it is easy to achieve fine cleaning without effort, and there is no damage to the substrate while achieving higher cleaning efficiency.

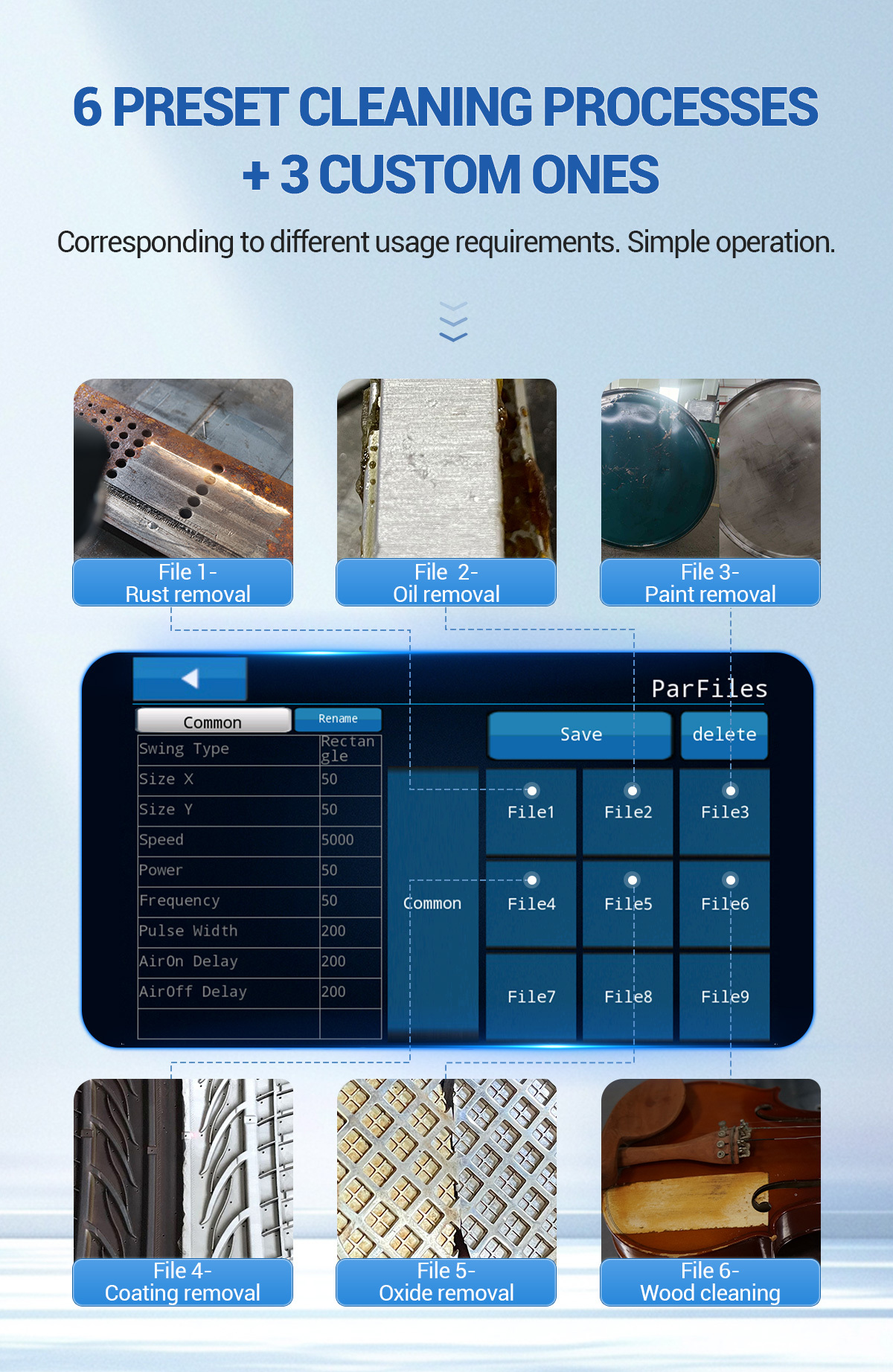

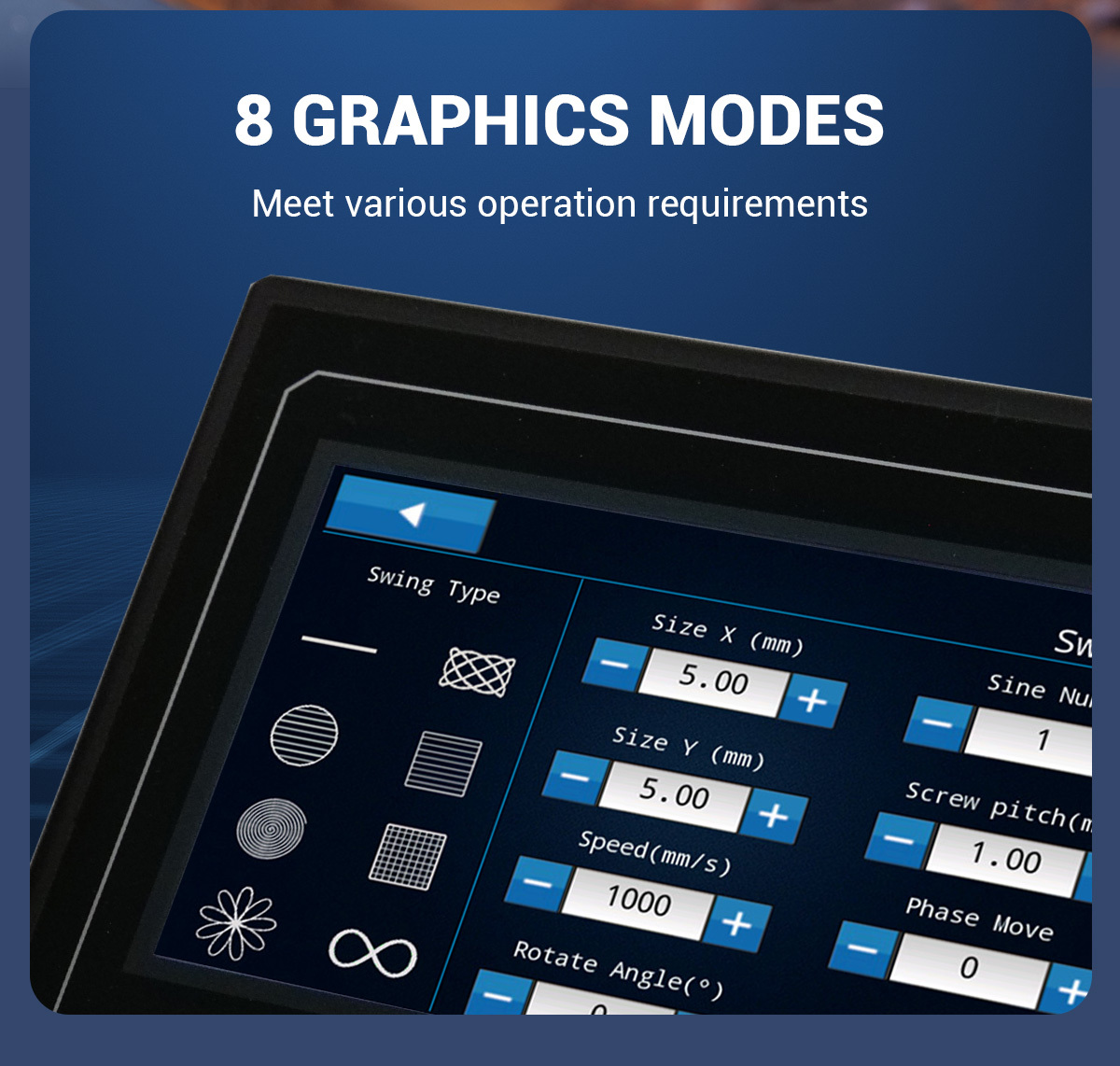

2. SFX pulse mobile handheld laser cleaning machine supports 8 cleaning modes, and it applies to complex scenes.

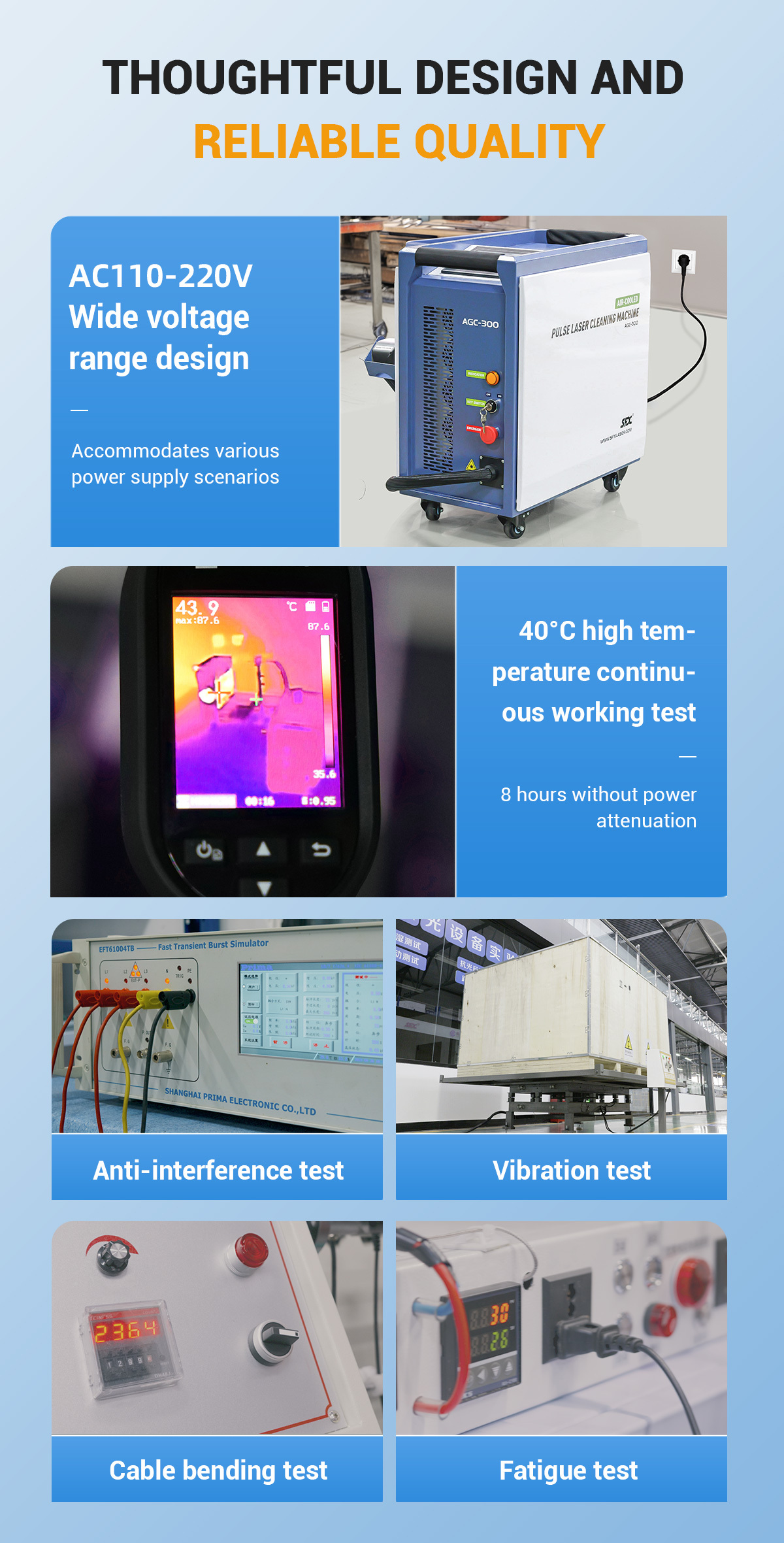

3. The SFX mobile pulsed laser cleaning machine has successfully undergone rigorous industry tests, ensuring consistent and reliable performance. With great stability and durability, this laser cleaning machine is well-suited for sustained industrial use.

4. The extended IO can cooperate with the manipulator, and realize automatic cleaning.

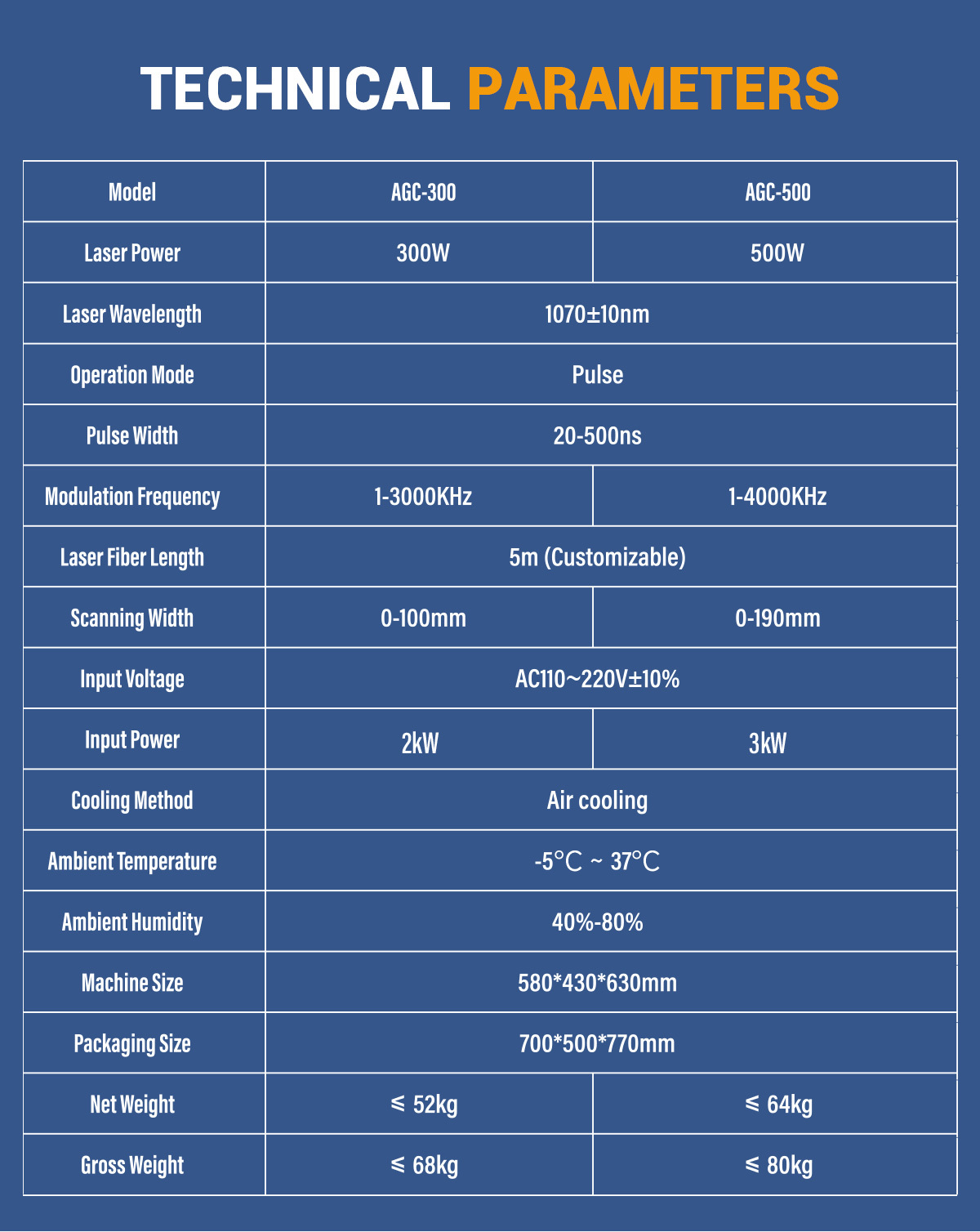

Specifics:

Model: AGC-500

Laser Power: 500W Single Mode

Laser Wavelength: 1070±10nm

Laser Working Mode: Pulsed

Pulse Width: 20-500ns

Frequency Range: 1-4000kHz

Fiber Cable Length: 5m(Customizable)

Scan Width: 0-190mm

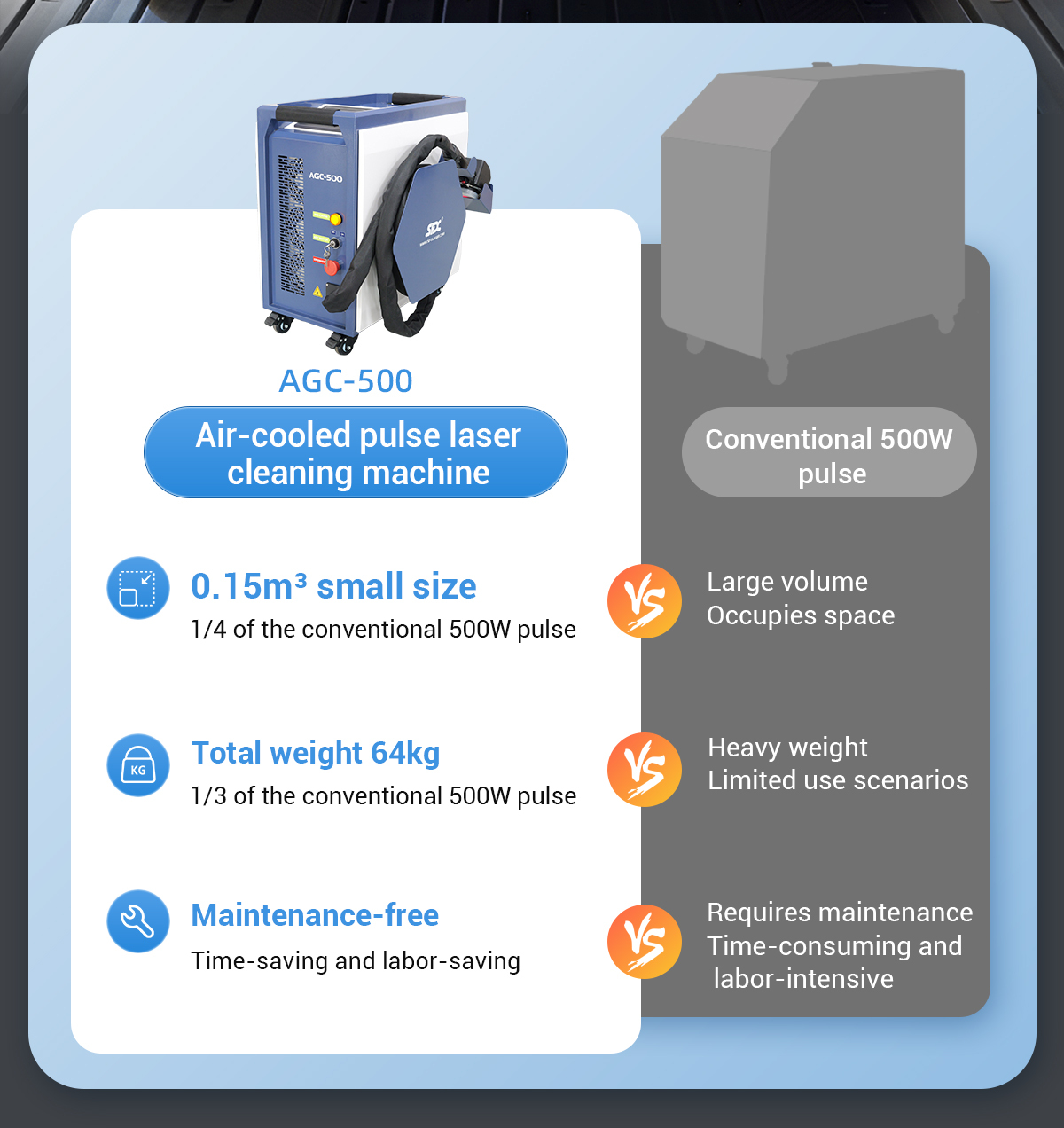

Cooling Method: Air Cooling

Working Voltage: AC 110~220V+-10%

Power Consumption: 3KW

Operation Temperature: 0~35℃

Ambient Humidity: 10-80%

Machine Dimension: 580*430*630mm

Packaging Dimension:700*500*770mm

Net Weight:  ≤67kg

Gross Weight:  ≤85kg

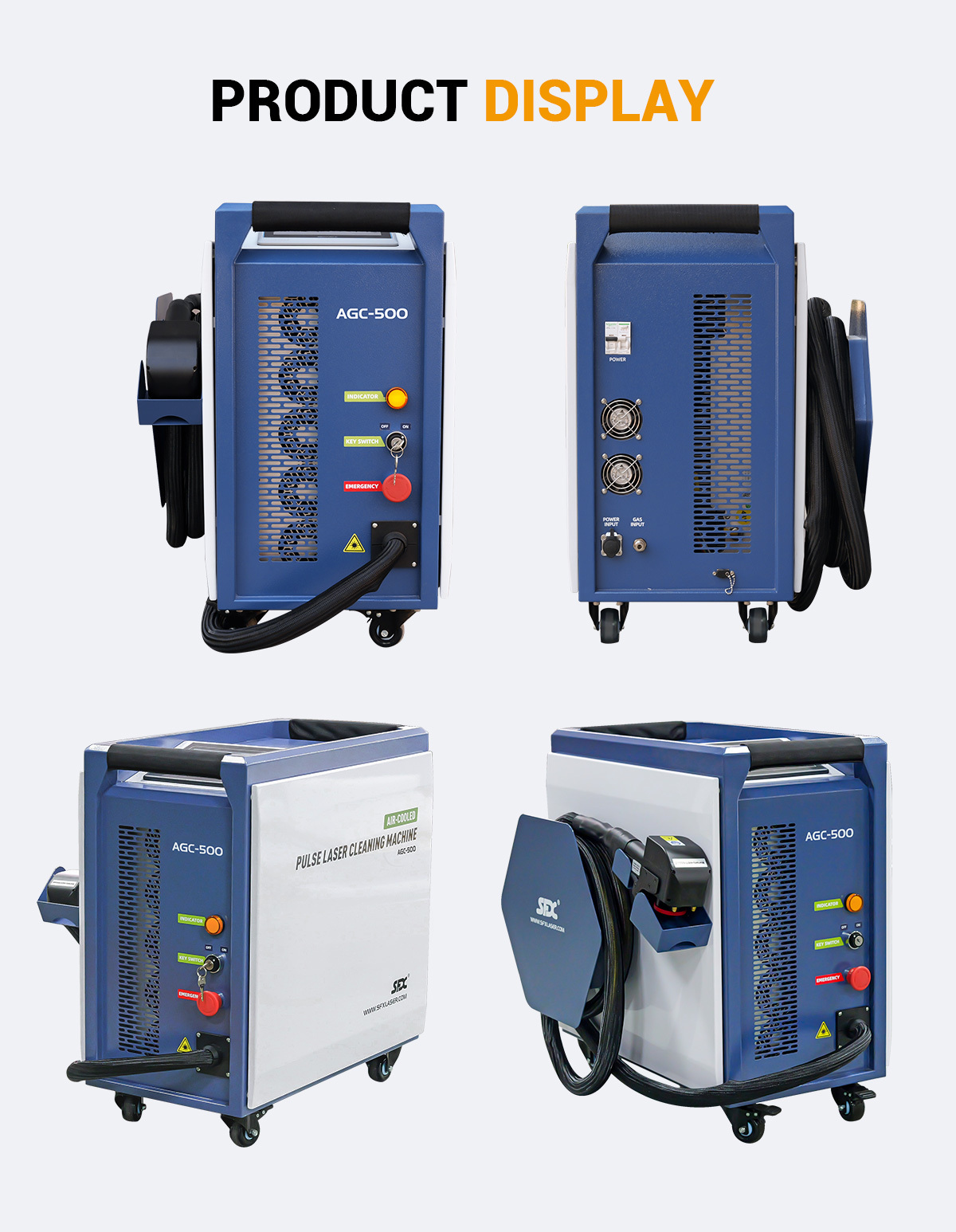

Pulse Laser Cleaning Machine 500w Details:

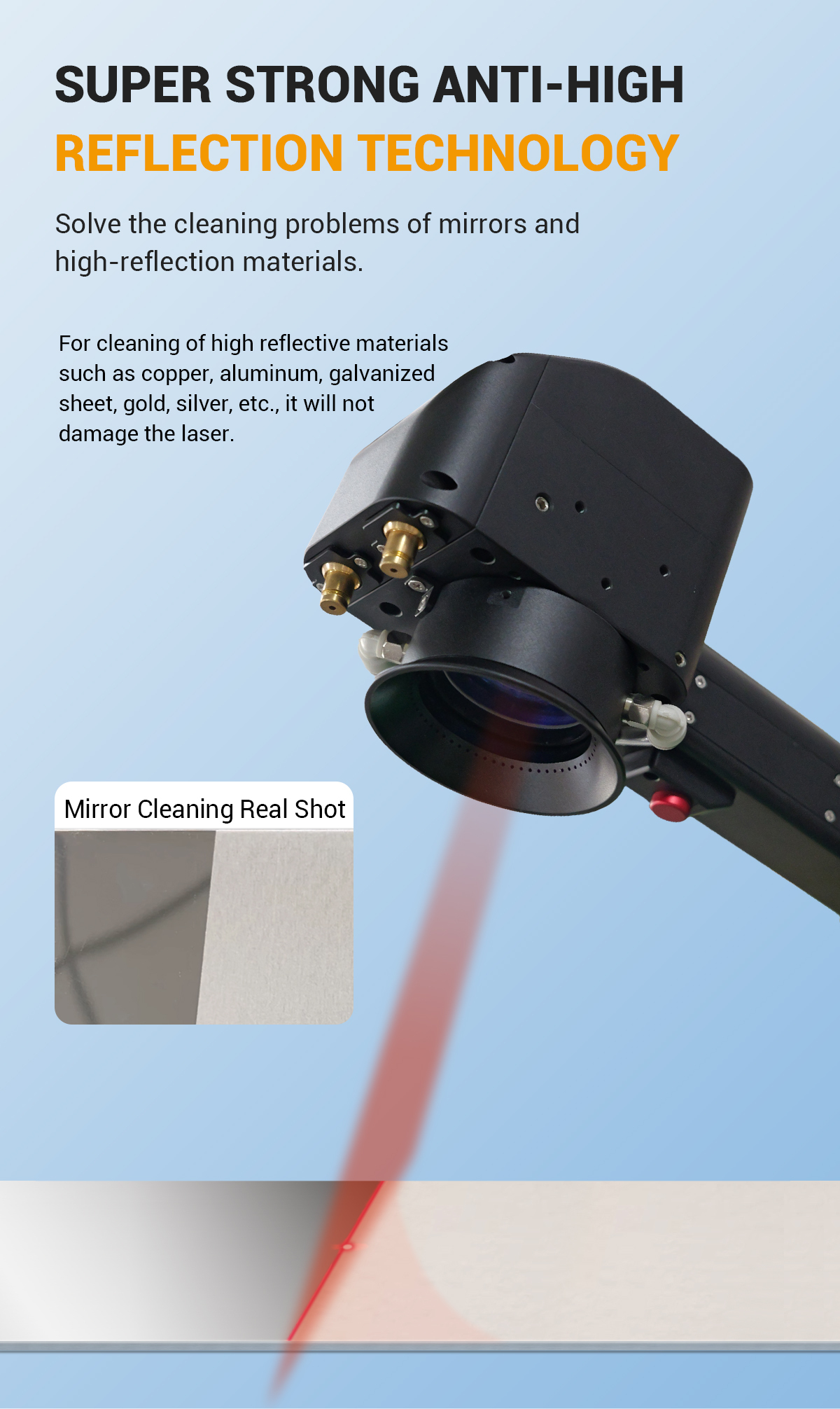

1. With double wobble and a smart cleaning head, the pulse laser cleaner is easy to operate and is in good stability.

2. Made of thick sheet metal chassis, which is of strong structure, anti-deformation, and good heat dissipation.

3. 10m fiber cable gives the pulse laser rust removal machine 500w a larger range of doing your cleaning job and is easy to clean anywhere.

4. There is a smart control panel with a full touchscreen operation interface. It supports multilingual and with the process library design, you can set it once and use it at any time.

5. It has neat wiring, the component selection has been scientifically calculated and the layout is reasonable, it has clear identification and is easy to maintain.

6. There is an air switch with fine manufacturing, which provides solid protection escort for your electricity safety.

7. The swivel casters are flexible and durable, they can self-locking and are silent in use.

8. All-in-one chassis with hinged top cover. Add storage function to protect cables and cleaning head.
