SFX 50W JPT SFX Fiber Laser Engraving Machine JPT LP+ Laser Source Fiber Laser Engraver Deep Marking for Metal with Rotary Axis

Parameters:

Name: 50W JPT Fiber Laser Engraving Machine

Model: SFX-50GS

Laser Power: 50watt (Power consumption: 1000W)

Laser Source: JPT LP+ (Frequency: 1-600kHz; Maximum Pulse Energy: 1.25mJ; Pulse Duration: 200ns)

Lens: 70x70mm/110x110mm/150x150mm/175x175mm/220x220mm/300x300mm lens (Wavelength: 1064nm)

Rotary Axis: Three-jaw D80/D100/D125mm rotary axis + Built-in drive.

Marking Depth: 50w-----≤1mm(0.049in)

Marking Speed: ≤7000mm/s

Software:EzCad2.0; Compatible system: Windows XP/Vista/Win7/Win8/Win10

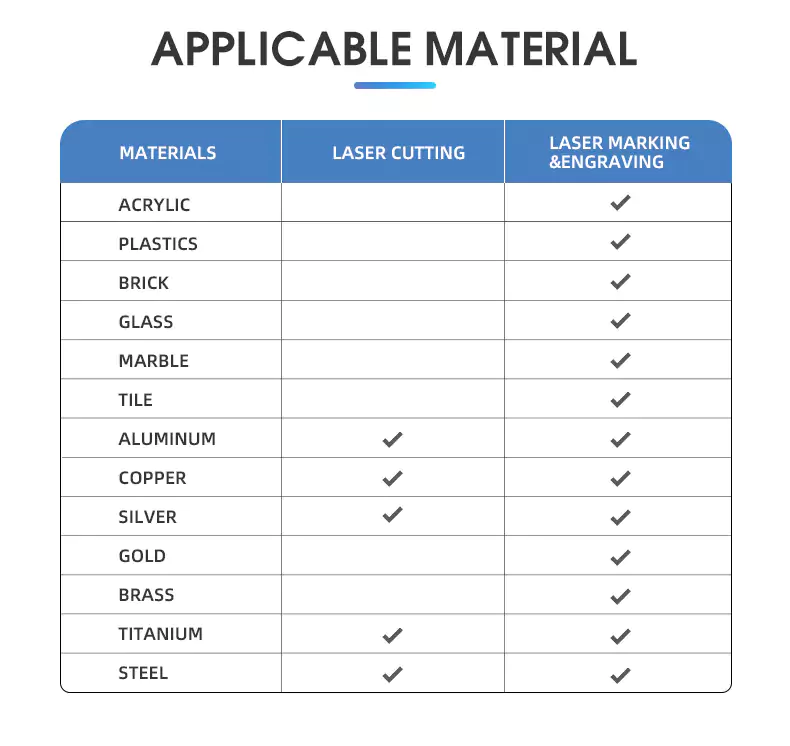

Application:

Thin metal cutting; Metal deep engraving;

Black engraving on stainless steel;

Metal surface deep processing;

Excellent marking effect on plastic;

Peel coating; alumina white marking;

Large area engraving etc.

Features：

Positioning: Red light positioning, the focus finder can quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product that you want to mark.

Galvanometer system: The imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed to 7000mm/s.

High-Rate of Electrical-Optical Conversion: up to 70%; Specialized optical fiber control card, good marking function, compatible with files of Ezcad2, etc,

Easy and simple Operation: English User Manual, VCD training video, software sending together with the machine, only need to install the driver from the USB flash disk to the computer, can provide computer remote assistance.

The function of marking software is powerful!  This Fiber laser marking machine can be compatible with software files such as Coreldraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc supported. The machine can directly use SHX, ITF fonts; Automatic encoding, printing serial number, batch number, date, barcode, OR code, and automatic jump number.

High configuration and high quality: JPT LP+ laser source; JCZ-LMCV4 control board; EZCAD2.0 software; Sino-galvo scanner; OPEX or Jollystar lens; Imported components, etc.

Package Includes:

1 x 50w JPT fiber laser marking machine

1 x Lens

1 x Rotary axis

1 x USB drive (16G, EzCad2.0 software, installation video, use video, user manual of software)

1 x Power line (1.5m)

1 x Goggles

1 x Allen wrench

1 x Footswitch

2 x Lock bar

6 x Positioning screw

1 x User manual

Shipping Term and Warranty Term:

50W JPT fiber laser engravers with 175X175mm Lens and D80mm Rotary Axis and EZCAD2 are stocked in CA, UAS.

Fast free shipping with door-to-door service by UPS, ETA: 4-7 working days.

Duties are included for customers in the USA, the price on the website is all you need to pay.

2-year warranty, after-sales center in Buffalo CITY, NY, US, fast and professional technical guidance from SFX laser.
