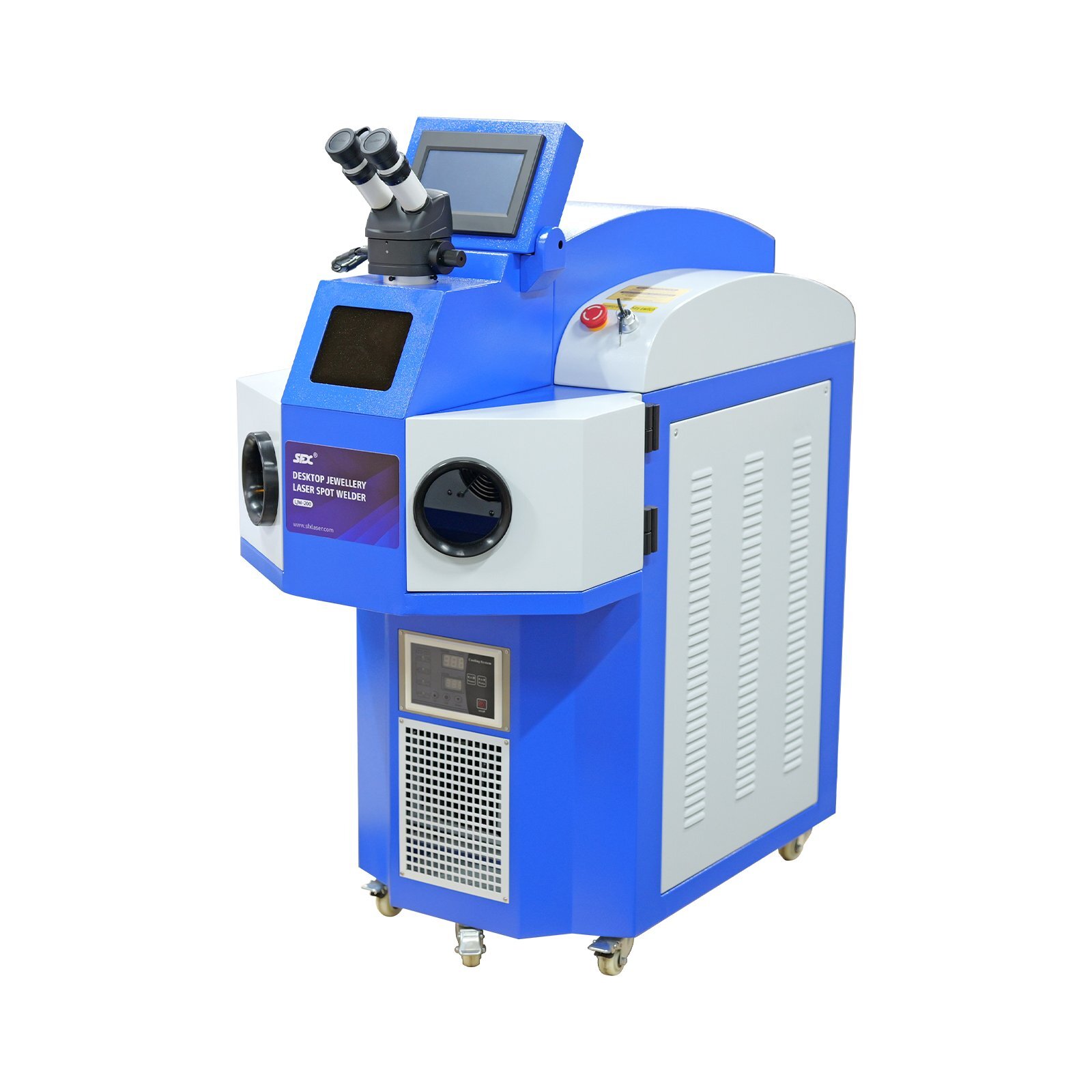

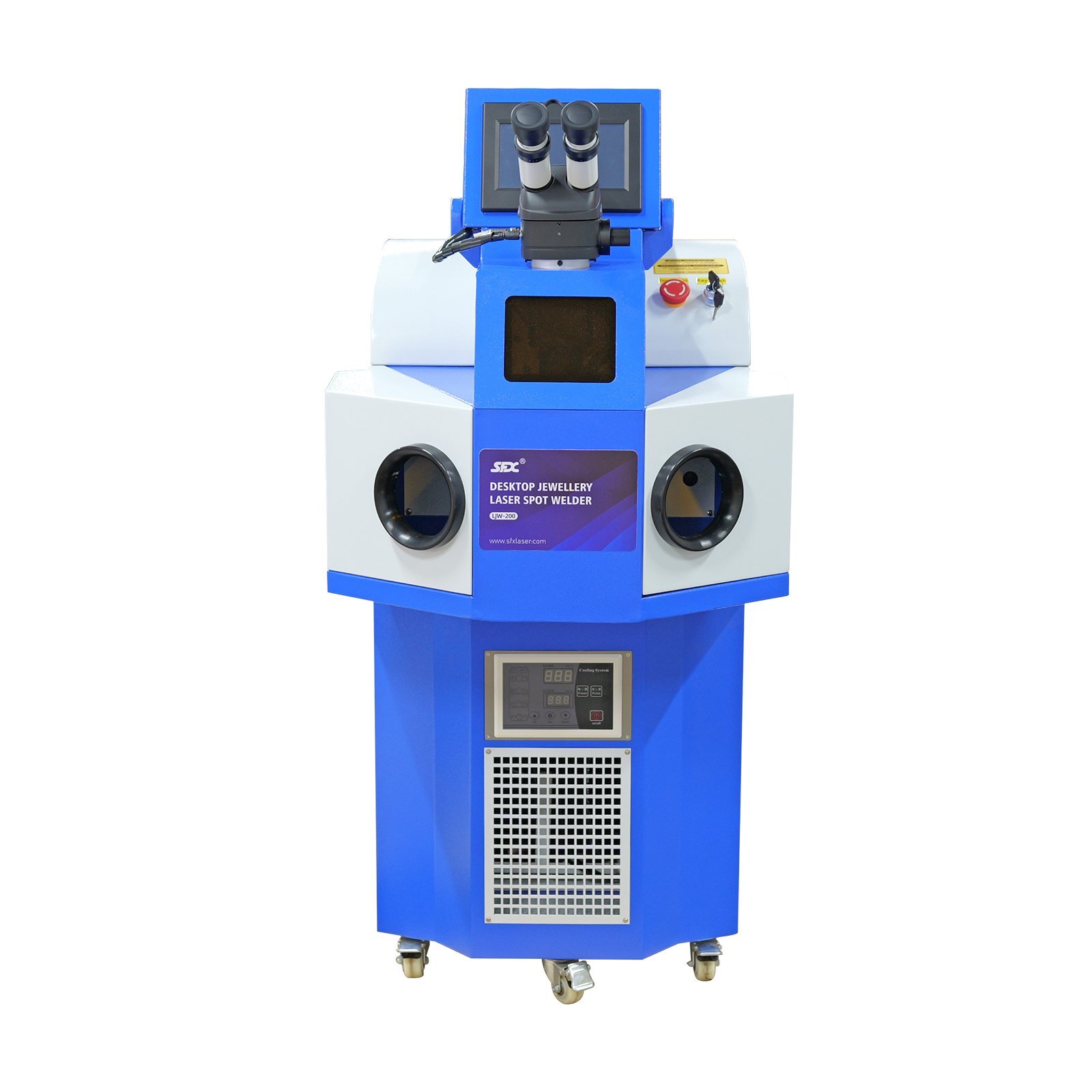

SFX 200W Laser Spot Welding Machine with CCD Gold Silver Jewelry Fast and Precise Spot Welding Smooth Weld Joints

Laser spot welding machine with CCD is mainly used in jewelry, dental, instruments, electronics, and other industries. It is especially used for patching holes, spot welding grit holes, repairing seams, and spot-welding inlaid parts in gold and silver jewelry.

Parameters:

MODEL: LJW-200

Laser wavelength: 1064nm

Laser frequency: 0-50Hz

Condenser reflector: Imported ceramic condensing cavity

Maximum laser power: 200W

Energy: 60J

Voltage: 220V 1 phase /380V 3 phase (voltage transformer is needed if for 110v)

Pulse width: 0-20ms

Spot adjustment range: 0.3-2.5mm

Cooling system: 1P Built-in water cooler

Rated Power: 6.5KW

Packaging size (mm): 1100*700*1300

Gross weight (kg): 180

Usage environment: 10-30℃

Advantages:

1. Precise and efficient: The laser jewelry spot welding machine ensures precise welding with its advanced technology, allowing for accurate and high-quality weld joints.

2. Cost-effective: With no consumables and minimal distortion during the welding process, this 200W laser jewelry spot welding machine with CCD offers a cost-effective solution for jewelry manufacturers.

3. Superior aesthetics: The smooth and beautiful weld joints created by this laser jewelry spot welding machine enhance the overall appearance and value of the jewelry pieces.

4. Intuitive and user-friendly: Designed for easy operation, even for beginners, this laser jewelry spot welder features a digital display and user-friendly interface for a seamless welding experience.

5. Reliable performance and support: This laser jewelry spot welding machine guarantees fast welding speed and ensures long-lasting and consistent performance for most of your jewelry welding needs of patching holes, spot welding grit holes, and repairing seams.

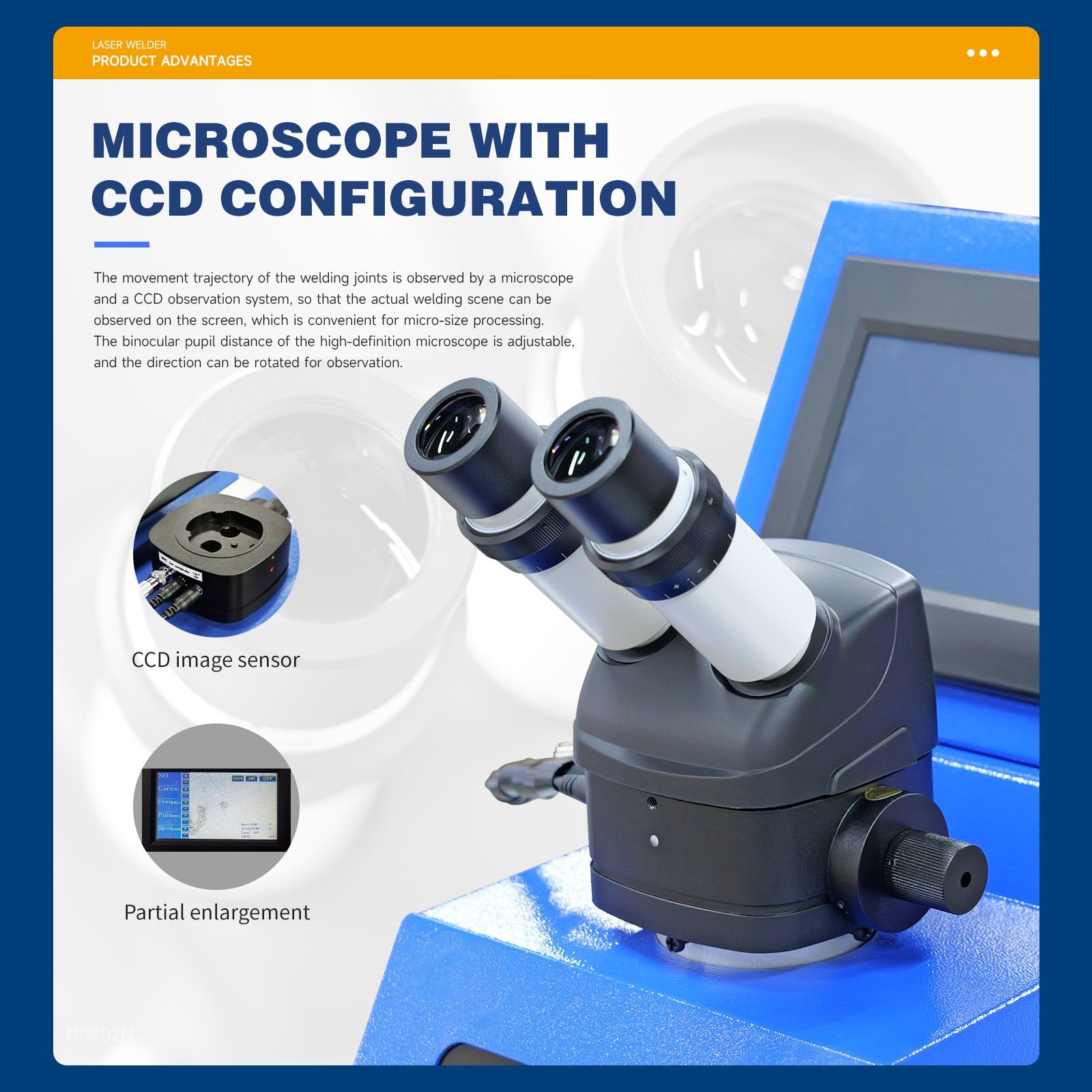

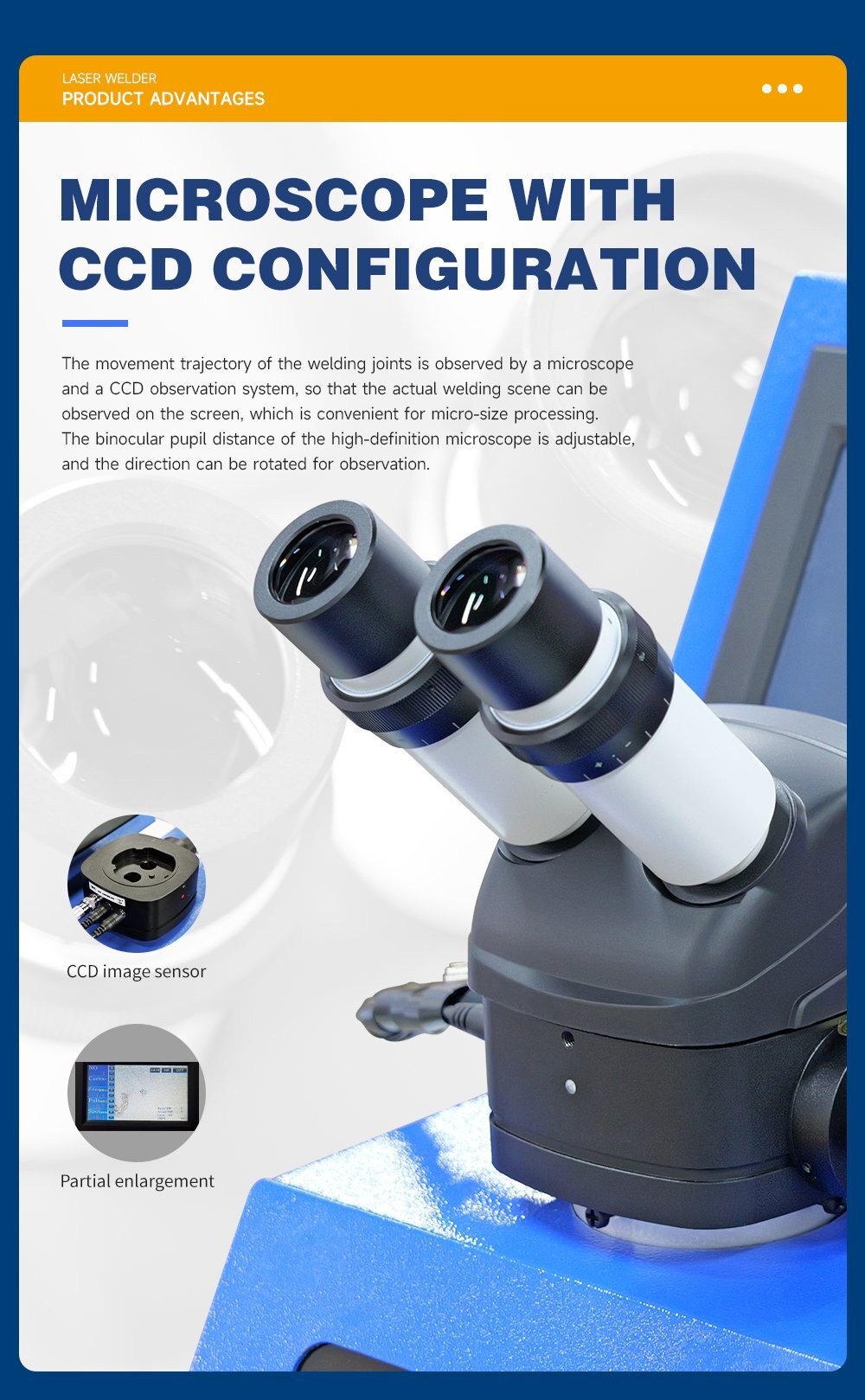

6. Microscope with CCD configuration: The movement trajectory of the welding joints is observed by a microscope and a CCD observation system, so that the actual welding scene can be observed on the screen, which is convenient for micro-size processing. The binocular pupil distance of the high-definition microscope is adjustable, and the direction can be rotated for observation.

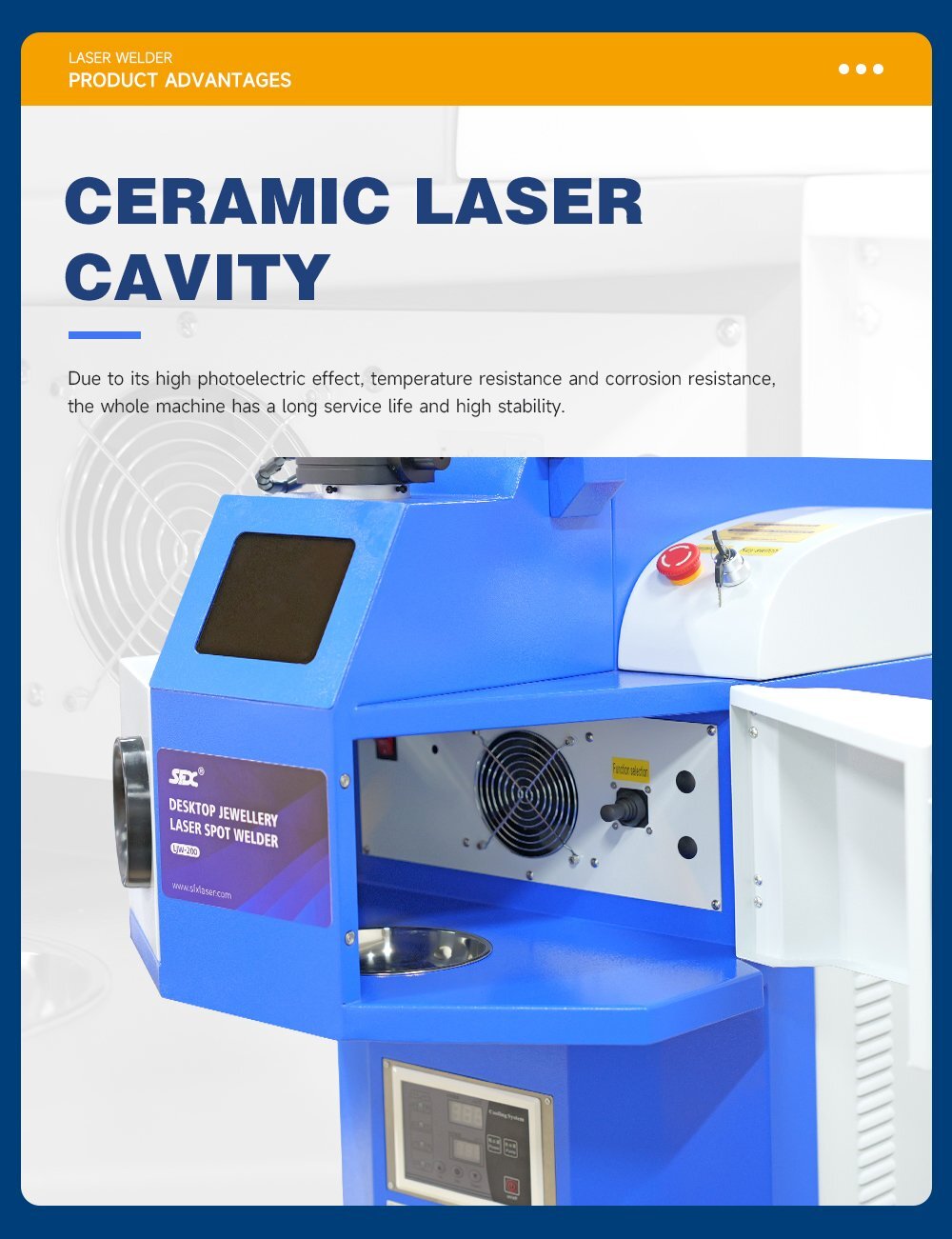

7. Ceramic laser cavity: Due to its high photoelectric effect, temperature resistance and corrosion resistance, the whole machine has a long service life and high stability.

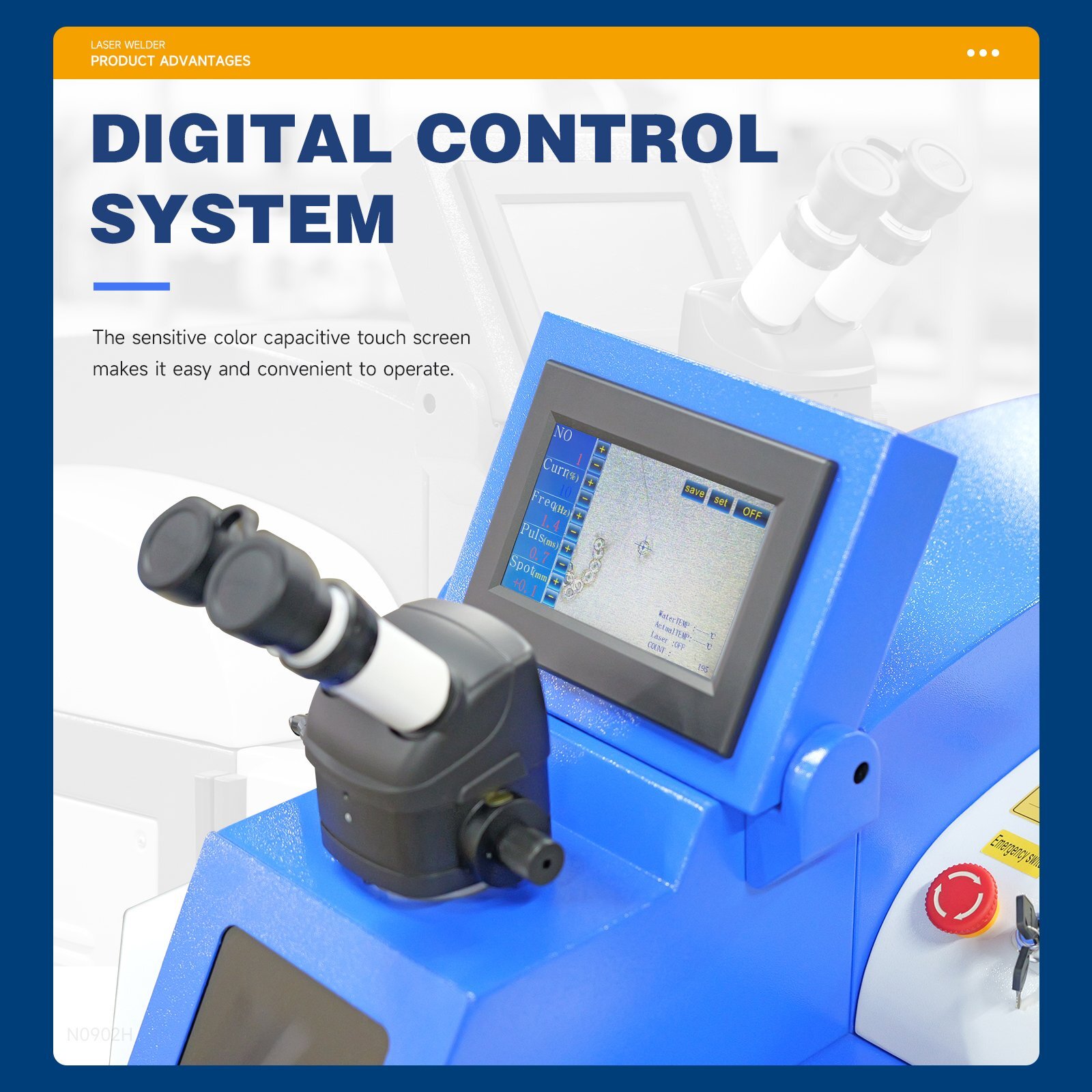

8. Digital control system: The sensitive color capacitive touch screen makes it easy and convenient to operate.

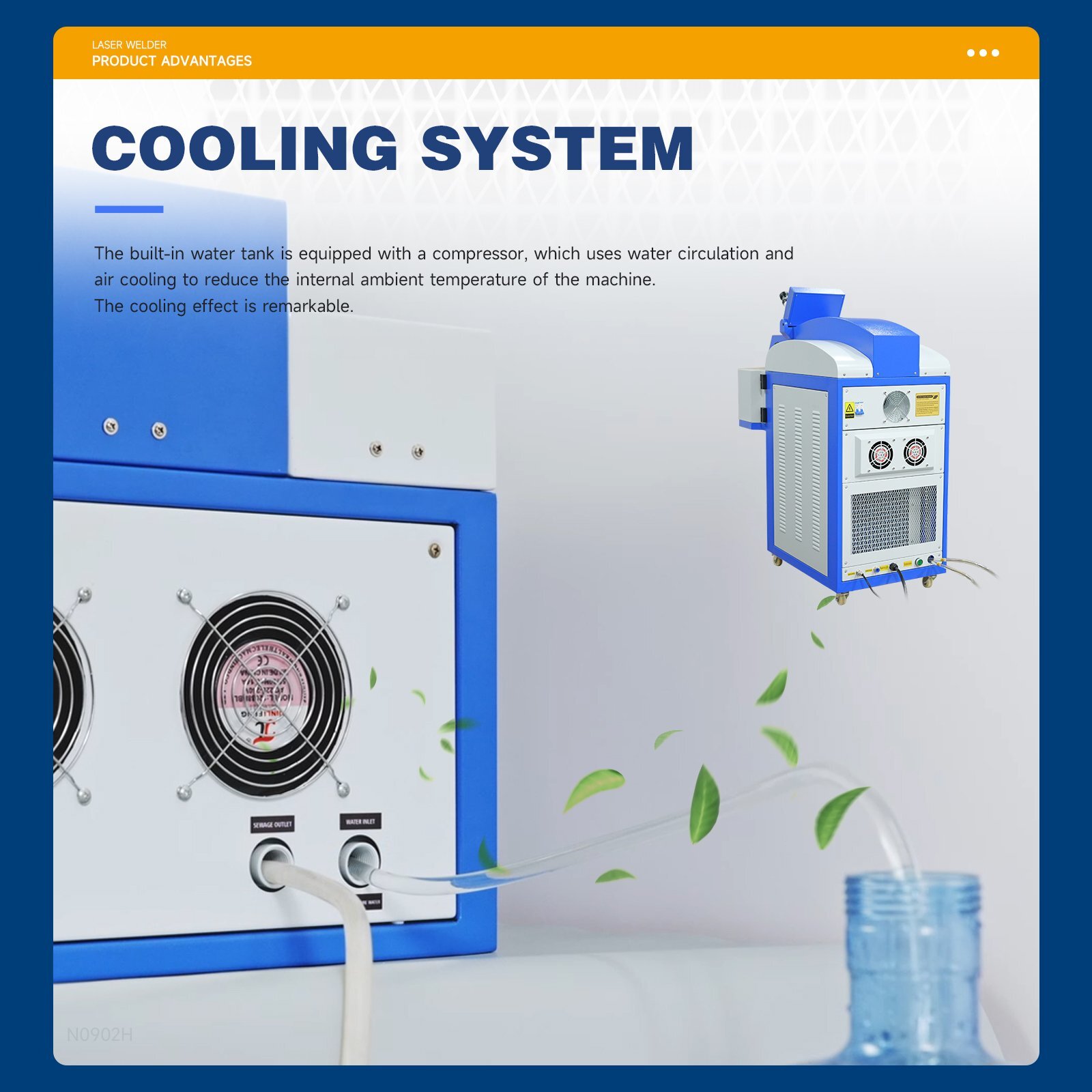

9. Cooling system: The built-in water tank is equipped with a compressor, which uses water circulation and air cooling to reduce the internal ambient temperature of the machine. The cooling effect is remarkable.

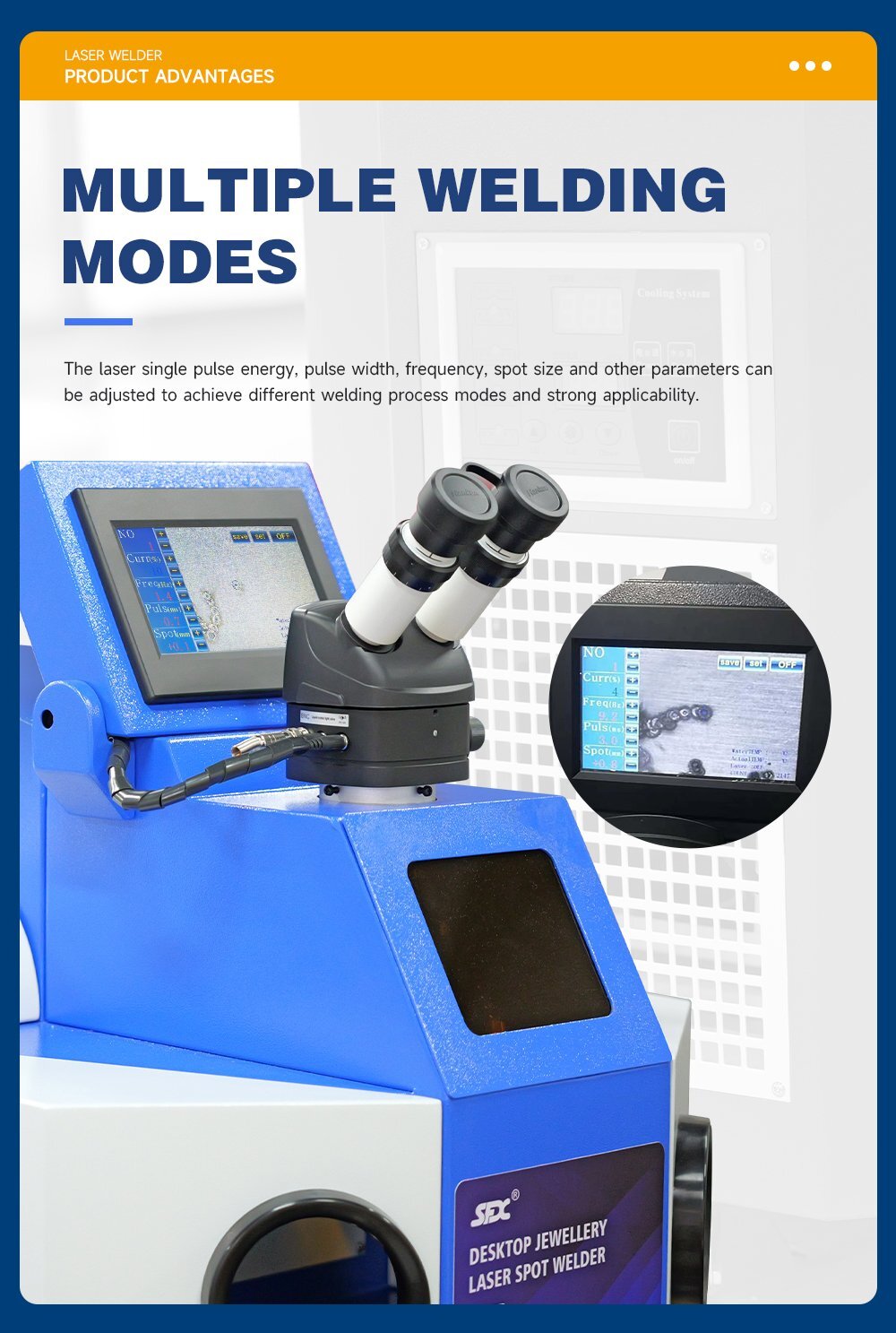

10. Multiple welding modes： The laser single pulse energy, pulse width, frequency, spot size and other parameters can be adjusted to achieve different welding process modes and strong applicability.

Features：

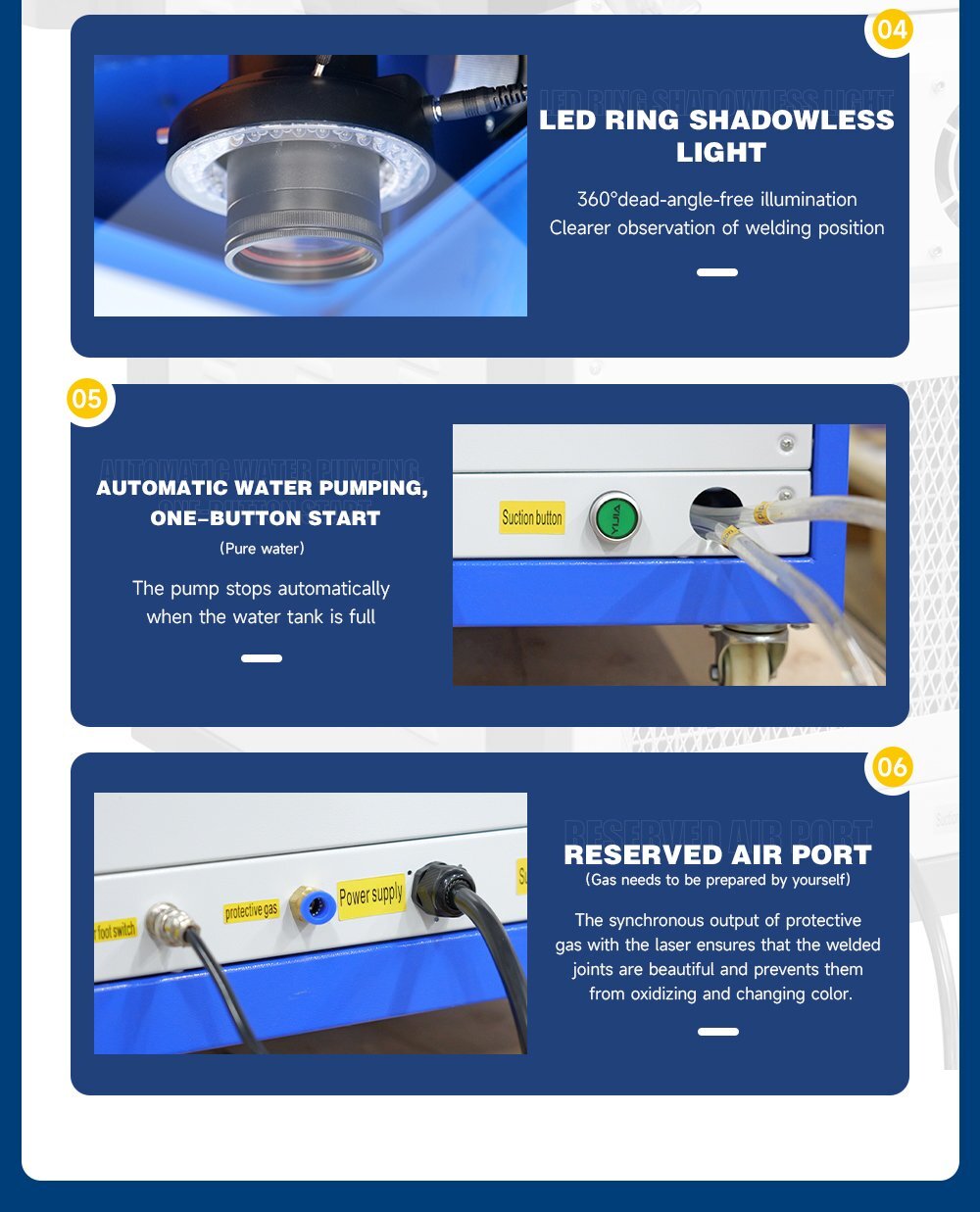

LED ring shadowless light

360°dead-angle-free illumination

Clearer observation of welding position

Automatic water pumping, one-button start (Pure water), the pump stops automatically when the water tank is full

Reserved air port, the synchronous output of protective gas with the laser ensures that the welded joints are beautiful and prevents them from oxidizing and changing color.

Our service:

1-Year Warranty, after-sales services, lifetime technical support

Free shipping, door-to-door service, ship by UPS/DHL/Fedex

No Import Duty for American Customers
