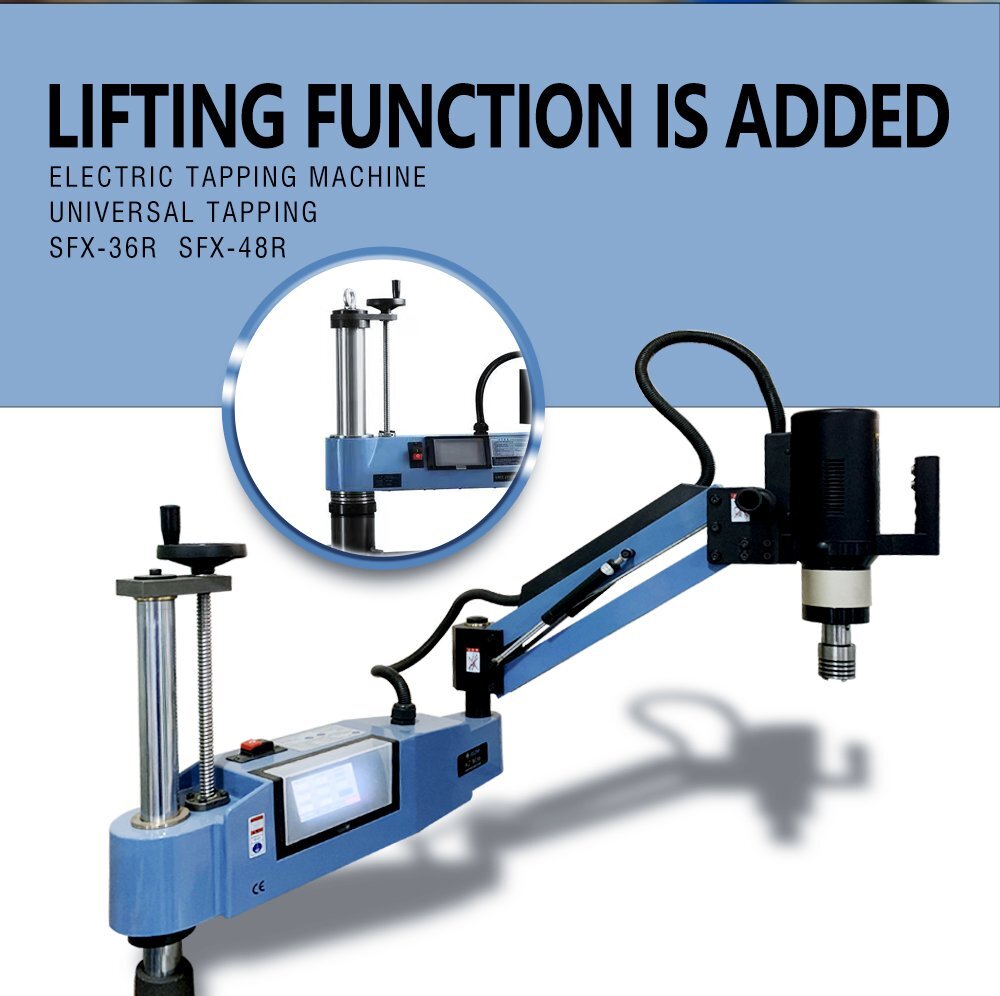

SFX Electric Tapping Machine Arm M12-M48 Threading Universal Electric Tapper 360° Flexible Tapping Arm with Lifting Function SFX-M48R

The electric tapping arms offer fast tapping speeds and an easy operation for threading. It is reliable and needs little maintenance. There are 3 operating modes for you to choose from for different threading needs. M48R electric tapping machine can used for M12-M48 threading.

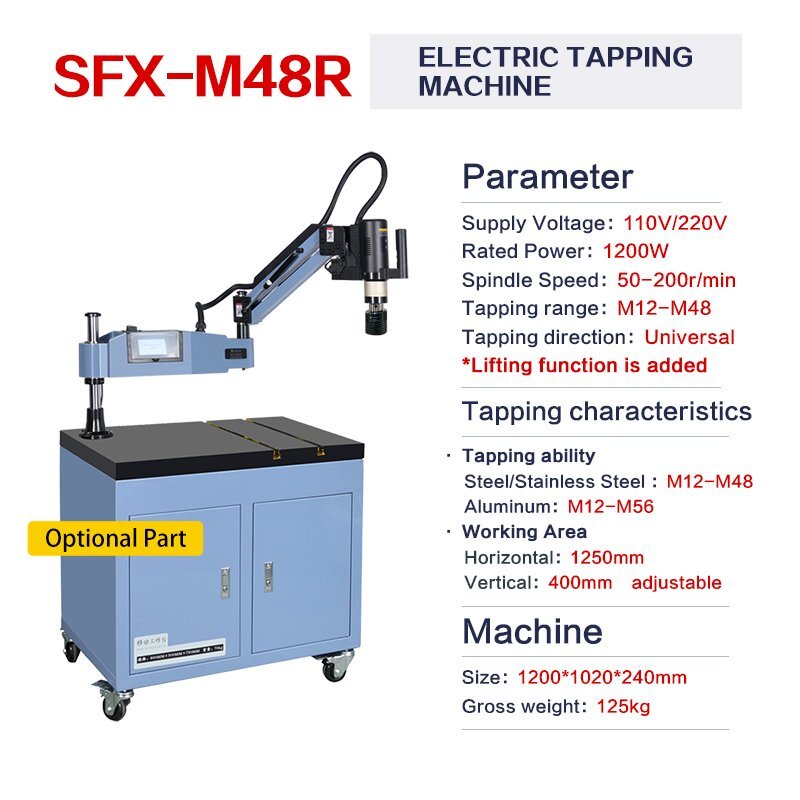

• Product name: Electric tapping machine
• Model: SFX-M48R
• Voltage: 110V/220V
• Power: 1200W
• Tapping range: M12-M56 for Aluminum; M12-M48 for Steel and Stainless Steel.
• Motor speed: 50-200rpm(adjustable)
• Working radius: 1250mm
• Working direction: Universal
• Package dimensions: 1200*1020*240mm

• Package weight: 125kg(276lbs)

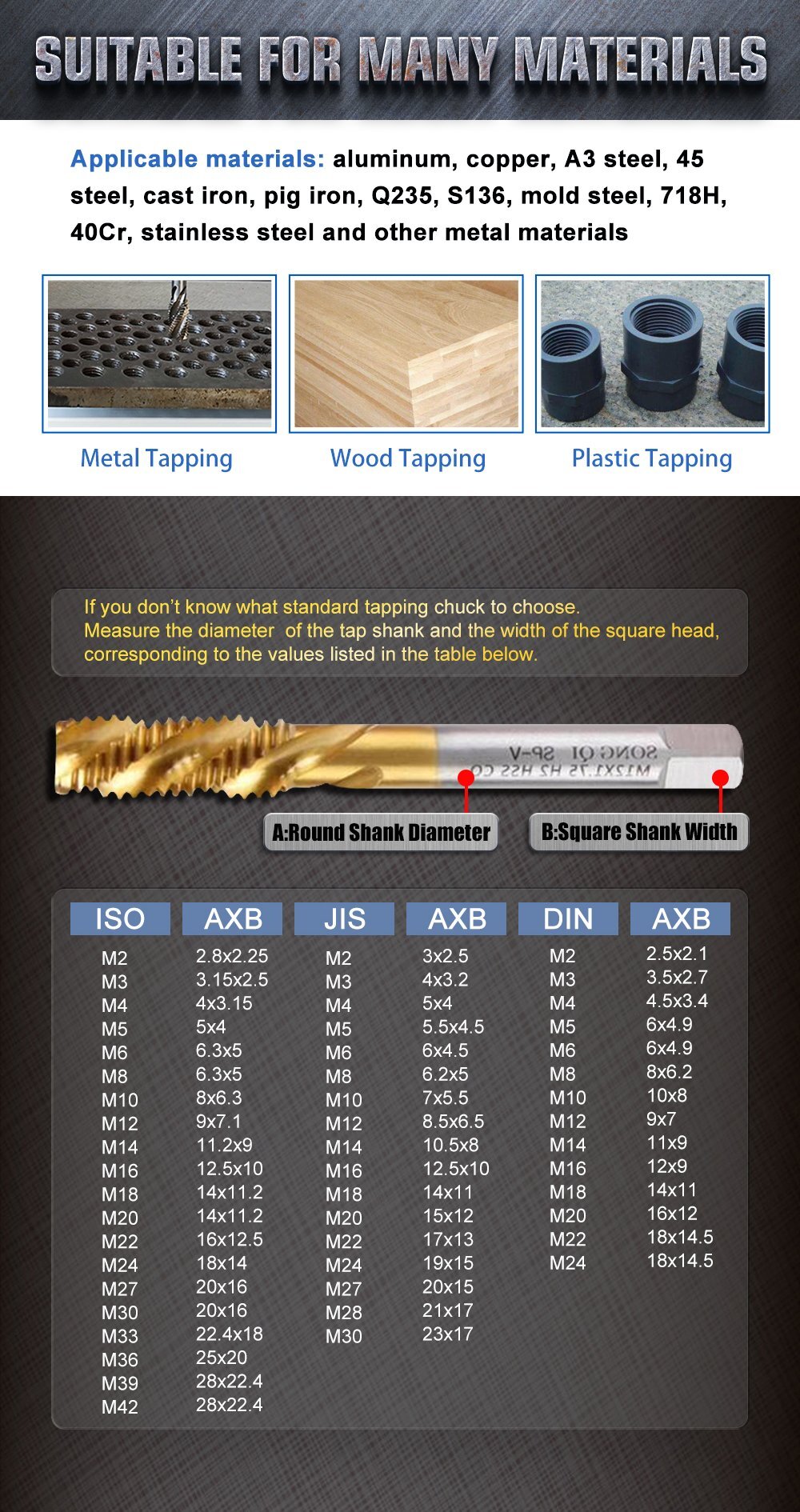

  Tapping Chuck configuration:

  ISO Standard: M12  M14  M16  M18-M20  M22  M24  Conversion Chuck(45-31)  M27-M30  M33  M36  M40  M42  M45-M48 (13PCS)

  JIS Standard: M12  M14  M16  M18  M20  M22  M24  Conversion Chuck(45-31)  M27  M30  M33  M36  M40  M42  M45  M48(16PCS)

  DIN Standard: M12  M14  M16  M18  M20  M22-M24 Conversion Chuck(45-31)  M27  M30 M33  M36  M40  M42  M45  M48(15PCS)

  Note: Optional. Select the chuck model you want before placing an order.




  Warranty and Shipping:

  Free shipping, and door-to-door delivery.

  One-year warranty, after-sales service.

  Note: the workbench is not included, you can buy it separately from the following link: Workbenck for holding electric tapping machine
