SFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal

stars, based on 0 reviews

$1599.00 unit
7items available
Contact Us

SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster


Note: There are two appearances shipped randomly.


EDM-2000B abide by the principle of electric corrosion to remove broken taps, it can fast remove broken taps, drill, drift, screw, plug guage, etc., easily process on work pieces at any size, especially effective for large machine tools.


Specifics:

· Name:Portable EDM broken tap remover

· Item:EDM-2000B

· Input Voltage: AC110V / 220V±10

· Input Power: 2000W

· Electrode Holder Diameter: 0.810mm

· Working Liquid: Tap Water

· Processing Depth of Spindle Servo(mm): 70mm

· Processing Speedmm / min): 1.5mm/min with 4mm Electrode; 1mm/min with 10mm Electrode

· Gross Weight: 20.5kg(45.19lbs)

· Adjustable Current: Stepper

· Set Depth:Alarm Automatically at certain depth

· Power Box Size(mm):420 * 220 * 370mm

· Packing Size(mm):560*435*480mm(22*17.14*18.91in)


Features

· Porbale EDM abides by the principle of spark erosion to remove broken tools, no direct contact, thus, no external force and damage to the work pieces.

· It is convenient to carry due to small size and light weight, and shows its special superiority for large work pieces.

· Working head is separated from the machine and could rotate in any direction, which is helpful for complex machining.

· The magnetic base can be adsorbed to the work piece for processing, which is convenient for clamping and operation.

· Easy Maintenance: MCU Controller and Function Modularization are utilized to guarantee stable performance and easy maintenance.

· Economical and Convenient: The working liquid is ordinary tap water; power consumption is moderate; the inlet pipe is detachable.

· Wide Processing Range: broken taps and drills (conductive material) above Ø2mm (Ø2mm is included).

· Long Working Hours: a cooling fan installed ensures the ventilation, which keeps the machine working continuously.


Shipping& Warranty:

· We have warehouses in New Jersey, California, and Kentucky in the United States, and the Broken Tap Remover Machine will be delivered from the warehouse near you.

· Free shipping, express with door to door service, no duty, no other fees.

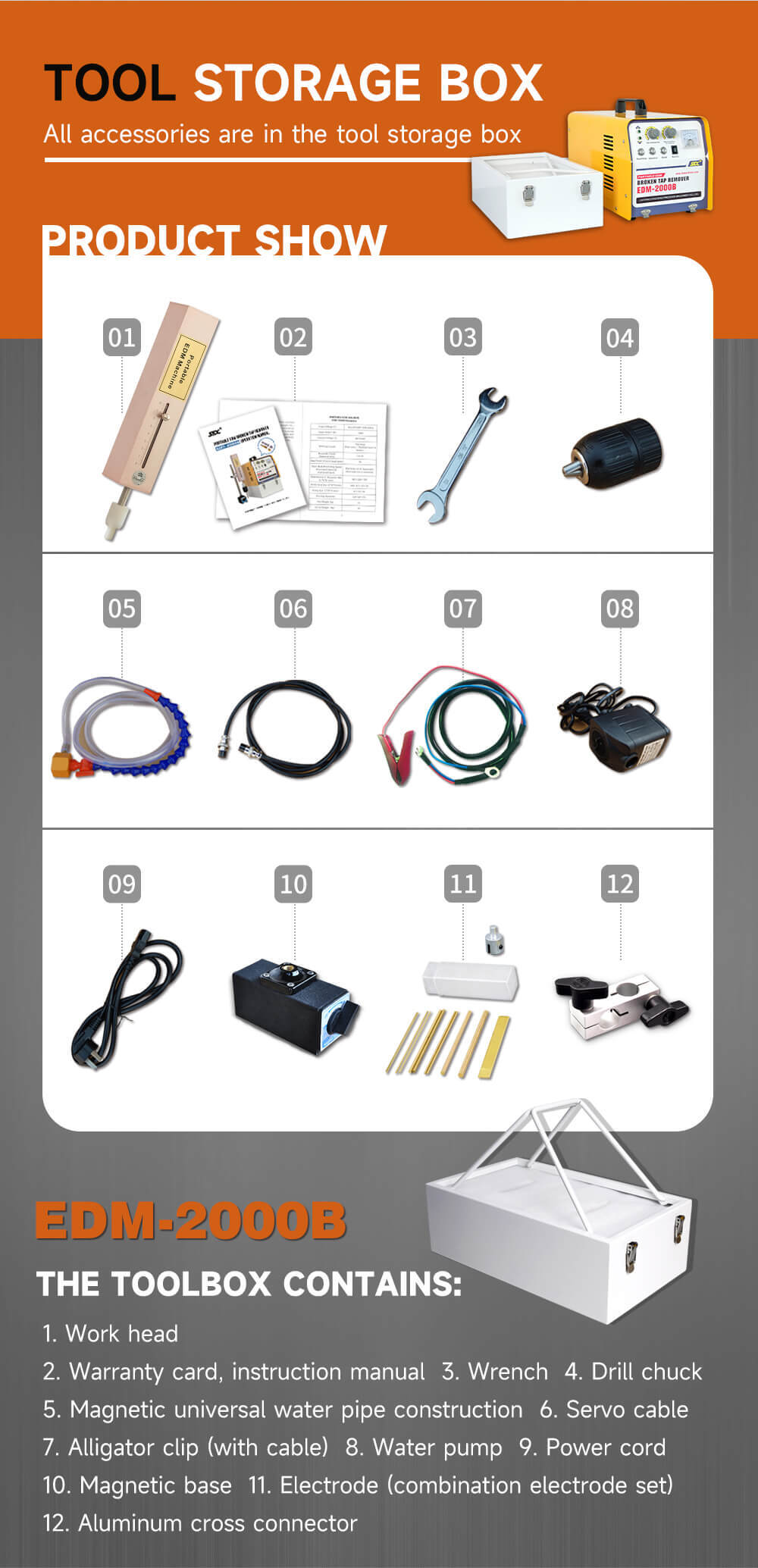

· The electrode is consumable product. We will ship with 9pcs electroderods ( φ2,φ3,φ4,φ5,φ6,φ8,φ10mm) ; 4pcs hexagonal   electrodes (φ6,φ8,φ9,φ10mm) and 2pcs sheet electrodes( 10mmx2mm, 20x2mm), all electrode lengths are 100mm.

· The warranty period is one year and within this time frame, if there are any technical problems,we would repair them for free including the new parts that needed for the repair.



SFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap removerSFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap remover
SFX 2000W Portable EDM Electric Taps Remover Machine For M2-M30 Taps/Bolts/Screw Buster Removal SFX 2000W Portable EDM Electric Taps Remover Machine M2-M30 Taps/Bolts/Screw Buster SFX,Portable EDM,Broken Tap Remover,Tap Burner,Tap Buster,Tap Extractor,Electric Discharge Machine,edm broken tap remover,edm tap removal,portable edm broken tap remover


Brand:
SFX
Machine Tpye::
Broken Tap Remover
Model::
EDM-2000B
Max Spindle Speed:
1.5mm/min
Electrode Chuck Diameter(mm):
0.8-10mm(0.031''-0.39'')
Max Processing Depth of Spindle Servo(mm):
70mm(2.76'')
Adjustable Current:
Stepper
Set Depth::
Alarm Automatically at certain depth
Input Voltage:
AC110V/220V±10%
Input Power::
2000W
Working Liquid:
Tap Water
Packing Size(mm):
560*435*480mm(22''x17.14''x18.91'')
Gross Weight::
20.5kg(41.19lbs)
