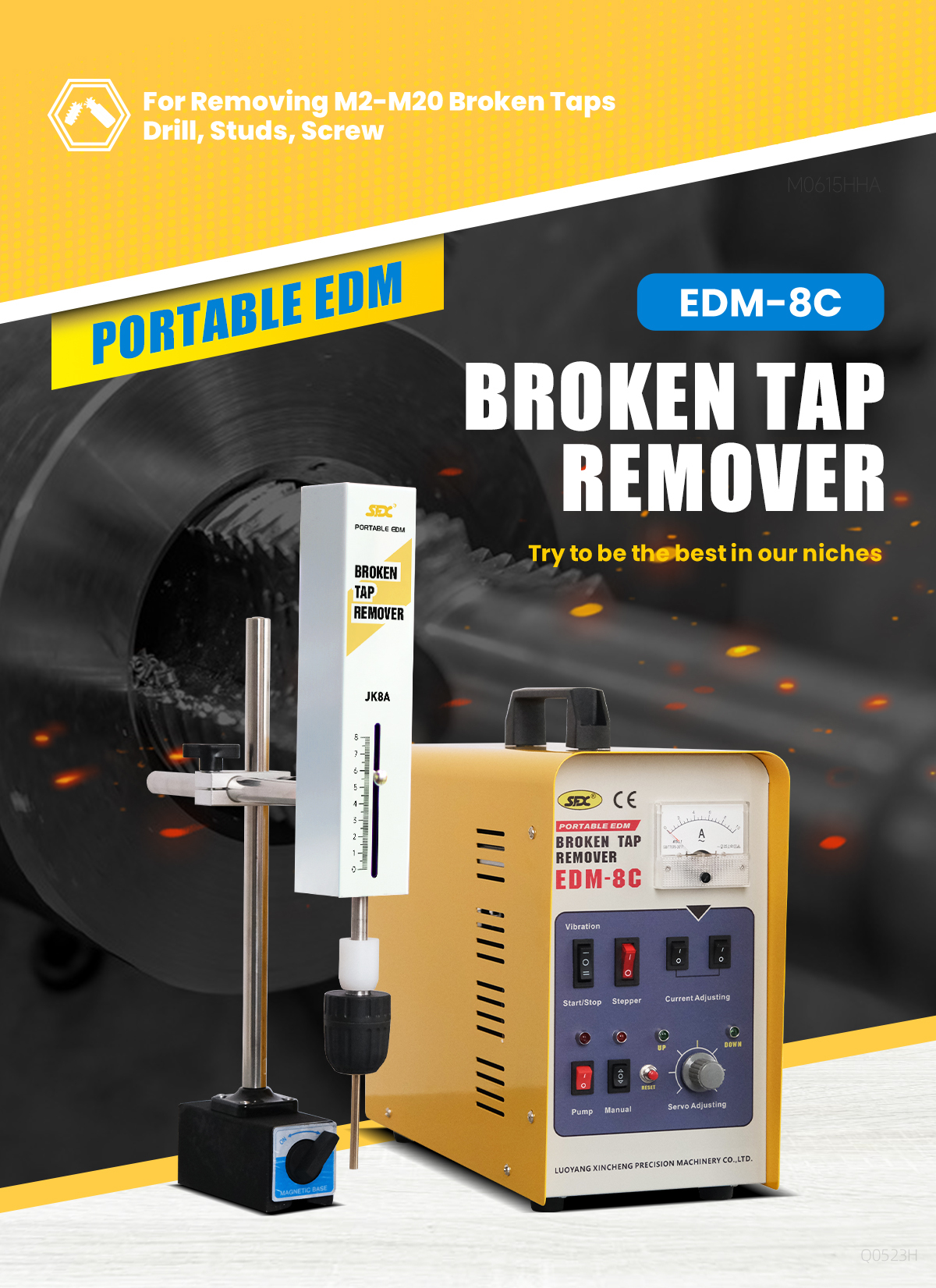

SFX Broken Taps Removal Machine 800W SFX Portable EDM Mini Broken Tap extractor Remove M2-M24 Broken Taps EDM-8C
SFX Broken Taps Removal Machine 800W SFX Portable EDM Mini Broken Tap extractor M2-M24 EDM-8C
EDM Broken Tap Remover is USA Stock, Warehouses in New Jersey, California, and Kentucky in the United States, and the Broken Tap Remover Machine will be delivered from the warehouse near you( American customers). Free shipping, express with door-to-door service, duties are included, no other fees, the price is all you need to pay.
SFX Portable EDM/Broken Tap Remover abide by the principle of electric corrosion to remove broken taps, it can fast remove broken taps, drill, drift, screw, plug gauge, etc., easily processed on workpieces of any size, especially effective for large machine tools.

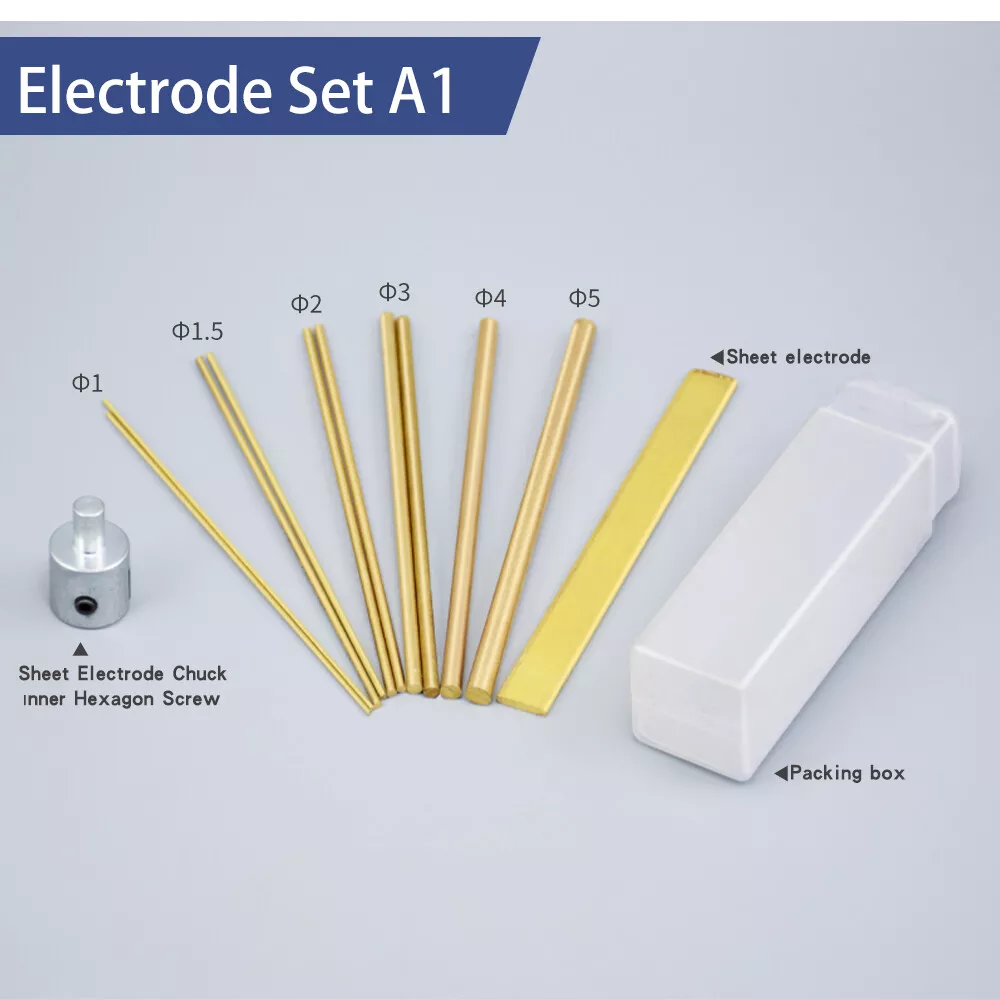

· The electrode is consumable product. We will ship with 10pcs rod electroderods( φ1x2pcs,φ1.5x2pcs,φ2xpcs,φ3x2pcs,φ4x1pc,φ5x1pc); And 1pcs sheet electrodes( 10mmx2mm), all electrode lengths are 100mm.
· The warranty period is one year and within this time frame, if there are any technical problems, we will repair them for free including the new parts that are needed for the repair.
Features:
- Porbale EDM abides by the principle of spark erosion to remove broken tools, with no direct contact, and thus, no external force and damage to the work pieces.
- It is convenient to carry due to its small size and lightweight and shows its special superiority for large work pieces.

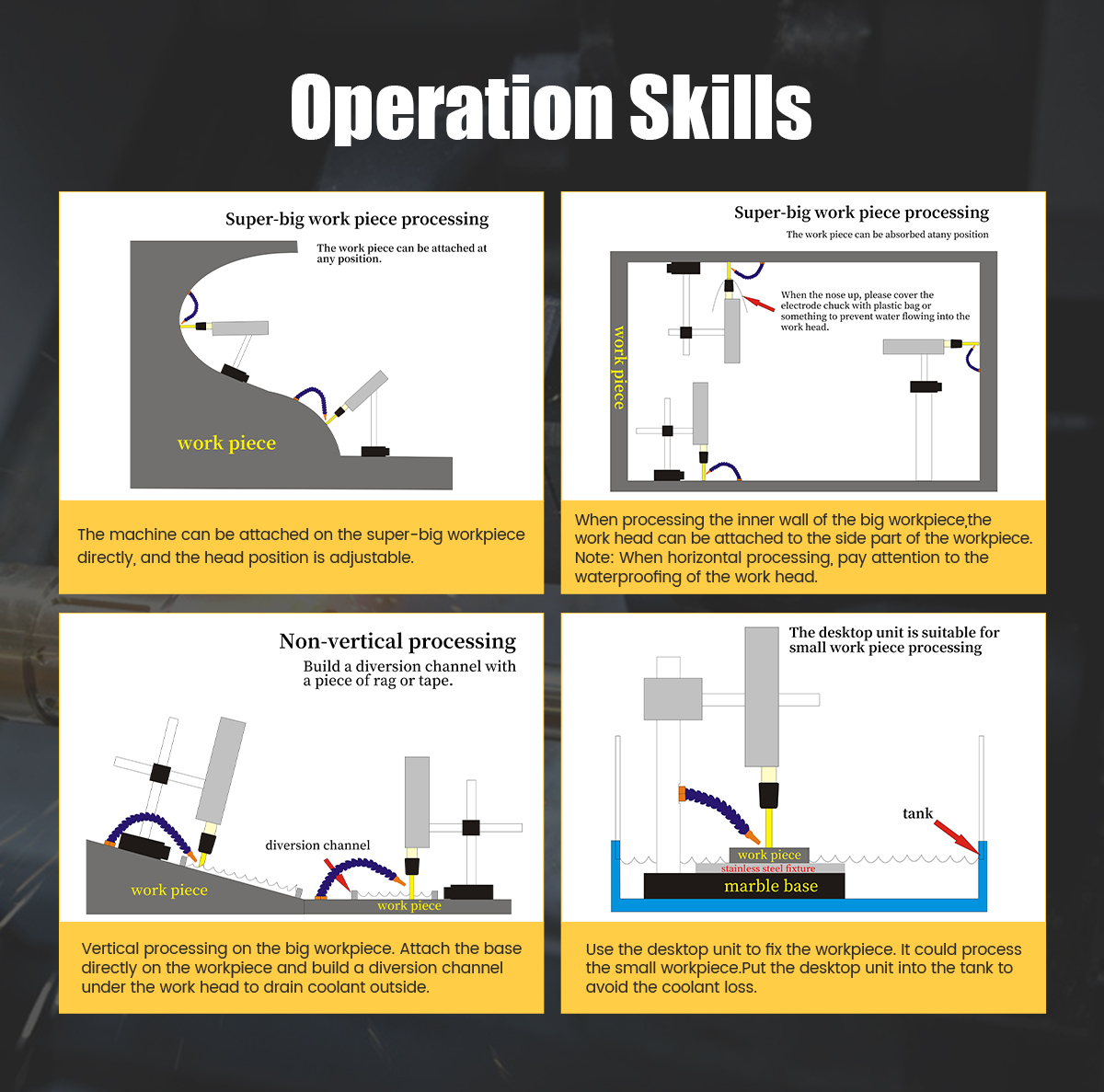

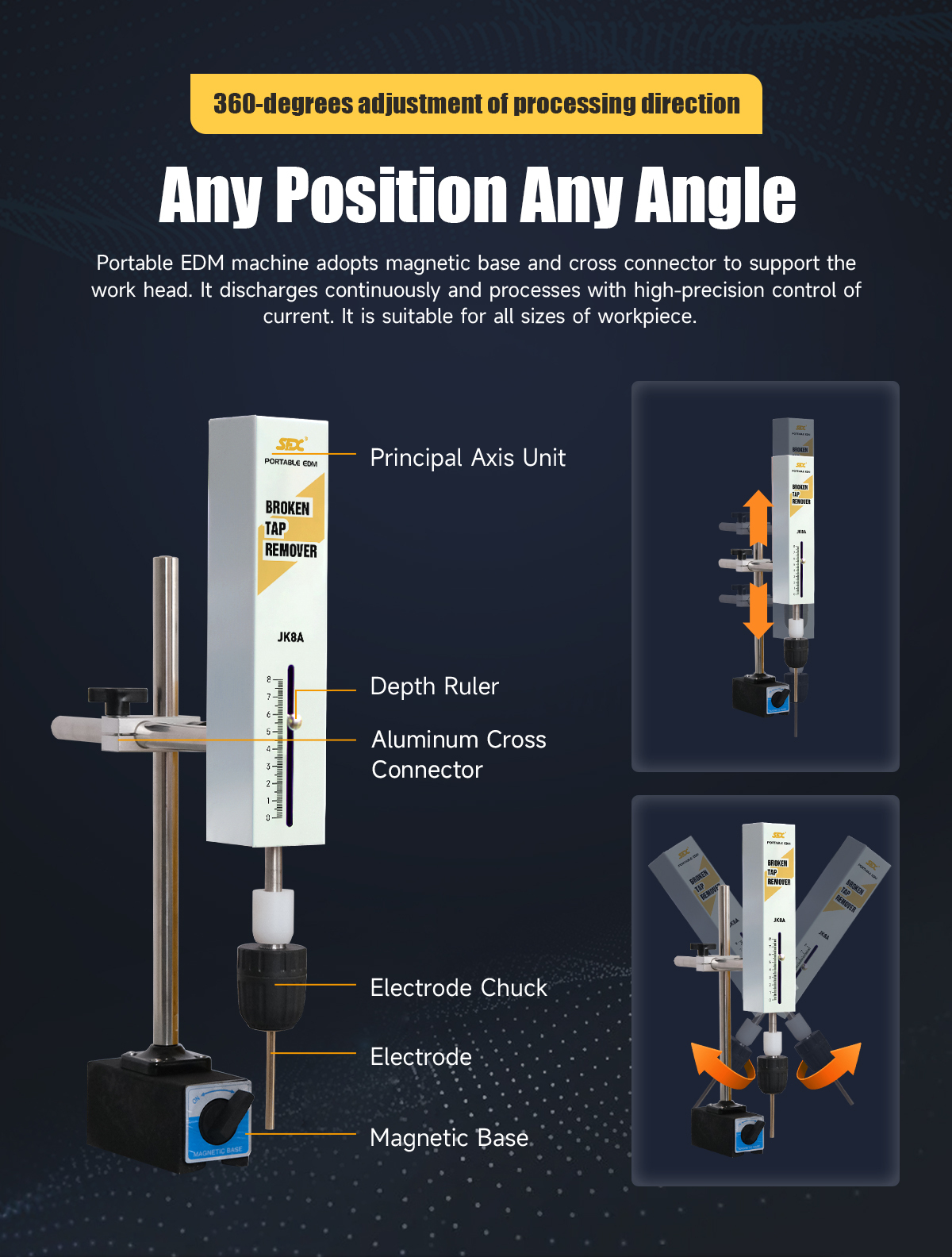

- The working head is separated from the machine and can rotate in any direction, which is helpful for complex machining.
- The magnetic base can be adsorbed to the workpiece for processing, which is convenient for clamping and operation.

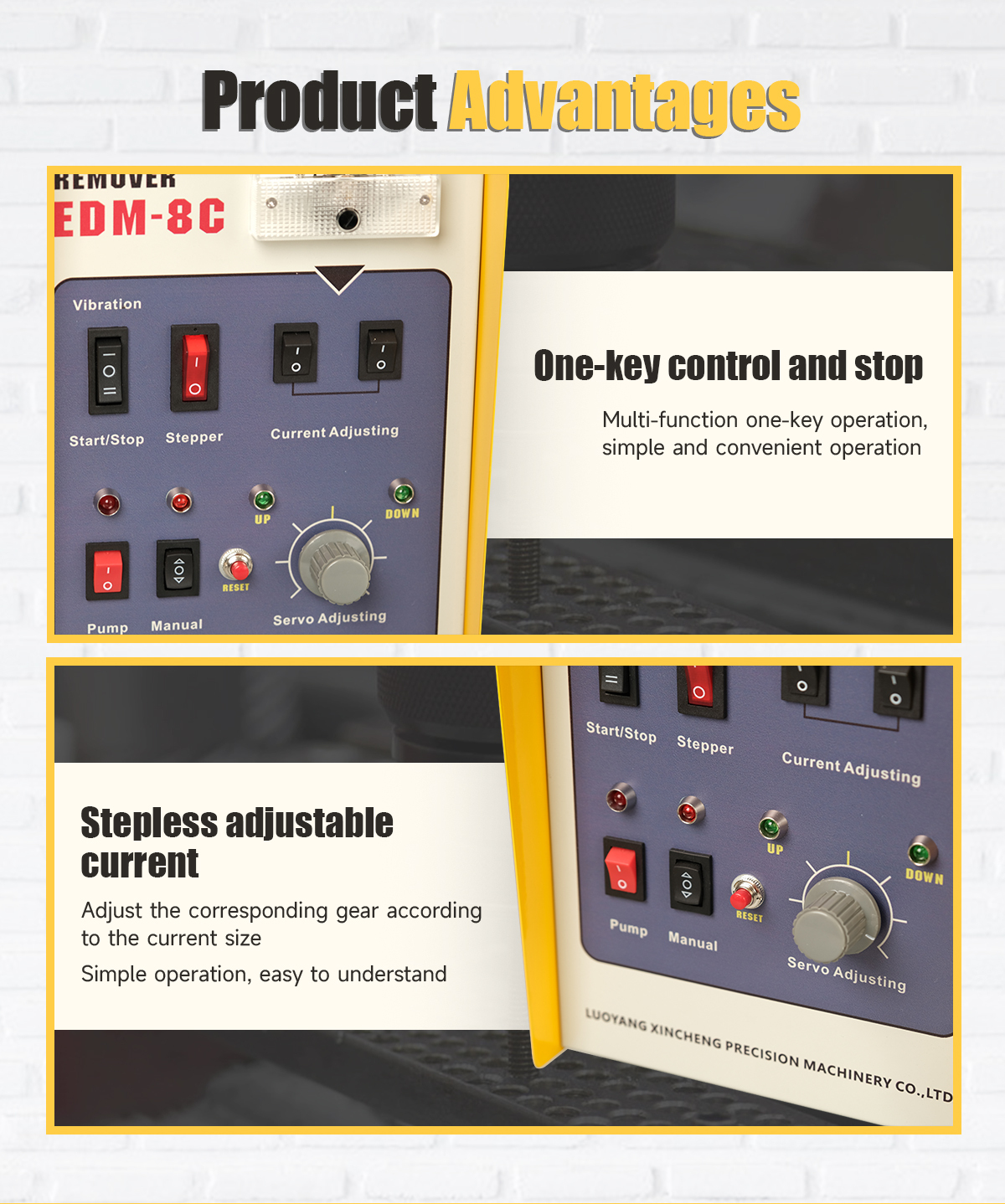

- Easy Maintenance: MCU Controller and Function Modularization are utilized to guarantee stable performance and easy maintenance.
- Economical and Convenient: The working liquid is ordinary tap water; power consumption is moderate; the inlet pipe is detachable.
- Wide Processing Range: broken taps and drills (conductive material) above Ø2mm (Ø2mm is included).
- Long Working Hours: a cooling fan installed ensures ventilation, which keeps the machine working continuously.
- Brand:
- SFX
- Machine Tpye::
- Broken Tap Remover
- Model::
- EDM-8C
- Max Spindle Speed:
- 1mm/min
- Electrode Chuck Diameter(mm):
- 0.8-10mm(0.031''-0.39'')
- Max Processing Depth of Spindle Servo(mm):
- 70mm(2.76'')
- Adjustable Current:
- Stepper
- Set Depth::
- Alarm Automatically at certain depth
- Input Voltage:
- AC110V/220V±10%
- Input Power::
- 800W
- Working Liquid:
- Tap Water
- Packing Size(mm):
- 540*330*470mm(21''x13''x18.5'')
- Gross Weight::
- 17.6kg(38.8lbs)
