SFX Handheld 500W Multimode Pulse Laser Cleaning Machine High Power Moveable for Hard to Clean Metal Rust Paint Oil Coating Achieve Fine Cleaning No Damage

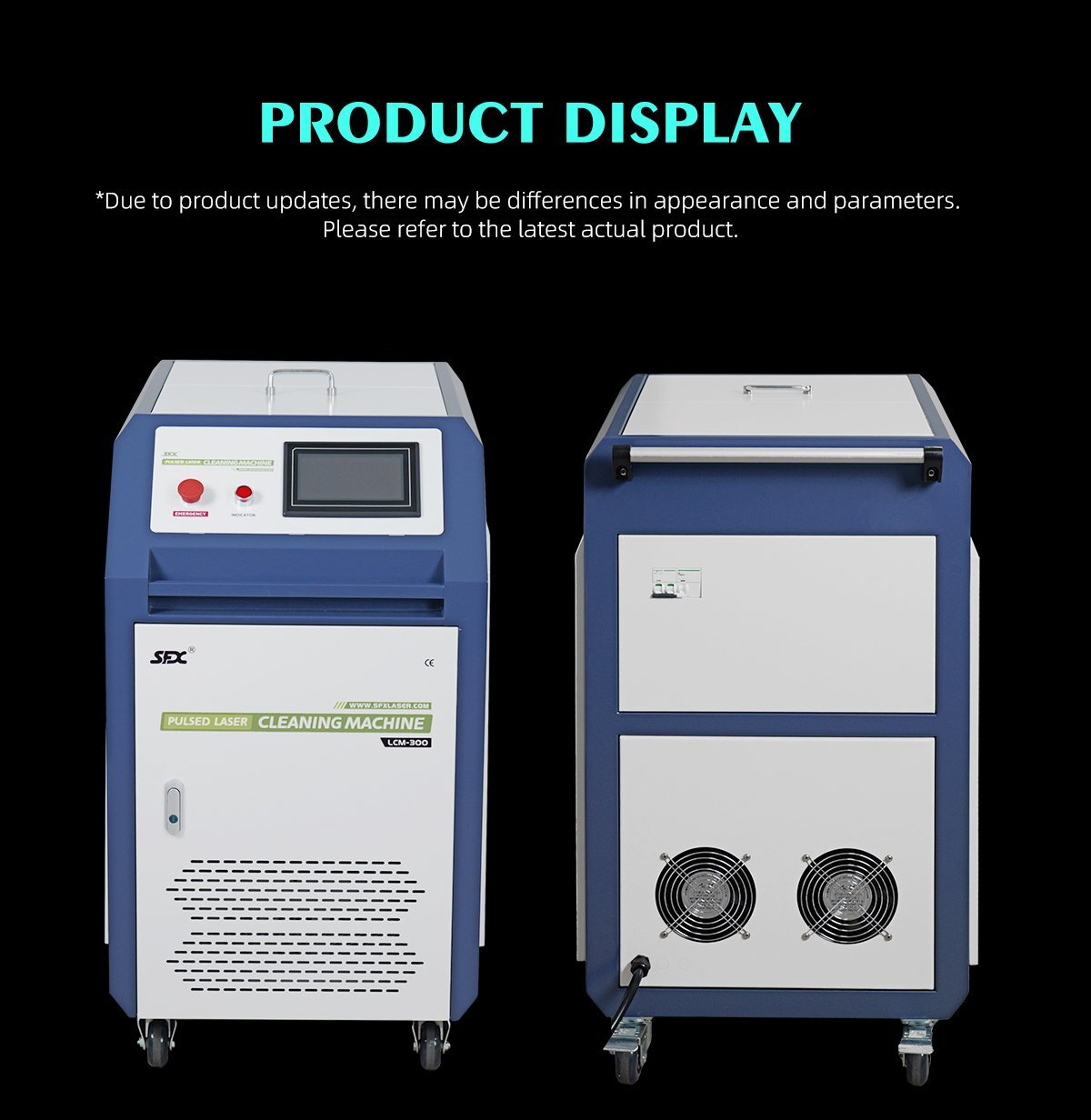

Note: As you can see on the pics, this machine has two appearances, and we will ship it randomly when shipping.

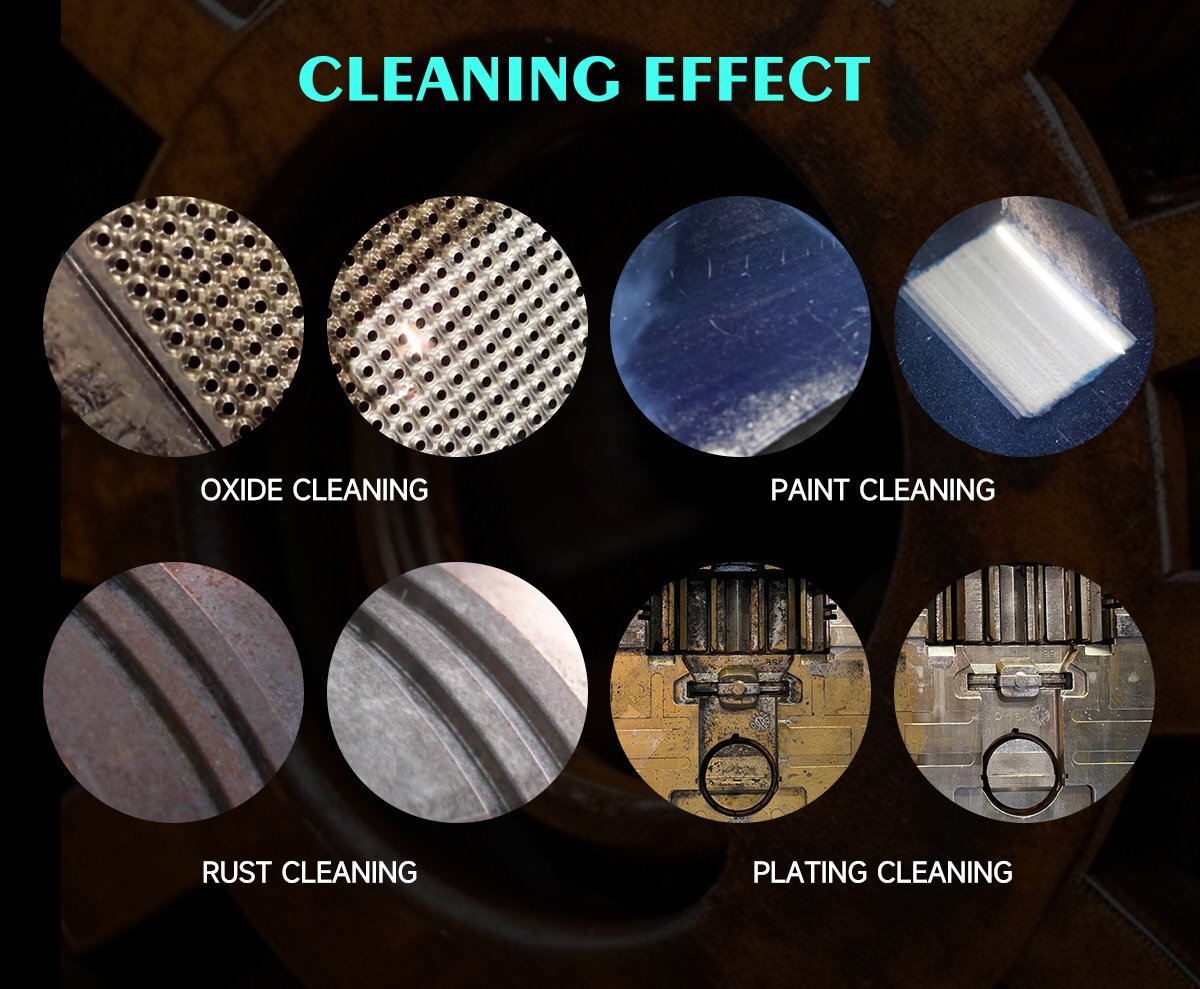

The SFX Mobile Pulsed Laser Cleaning Machine, equipped with a MAX 500W pulse laser source, can be used for various applications, including rust removal, oil removal, paint removal, coating removal, oxidation layer removal, plating removal, adhesive layer removal, and cultural relic restoration, etc. This 500W pulse SFX laser cleaning machine can be widely used in aerospace, mold manufacturing, automotive, food processing, tire hub production, pharmaceuticals, chemicals, and other industries. The SFX mobile pulsed laser cleaning machine has successfully undergone rigorous industry tests, ensuring consistent and reliable performance. With great stability and durability, this laser cleaning machine is well-suited for sustained industrial use. This 500w pulse laser cleaning machine operates in multi-mode, featuring a larger optical fiber core. The larger core size results in a broader spot size, enabling faster and more efficient cleaning processes.
Pulse Laser Cleaning Machine 500w advantages:
1. The 500W pulse laser cleaning machine overcomes the disadvantages of traditional cleaning, it is easy to achieve fine cleaning without effort, and there is no damage to the substrate while achieving higher cleaning efficiency.
2. SFX pulse mobile handheld laser cleaning machine support 8 cleaning modes, and it is applicable to complex scenes.
3.The extended IO can cooperate with the manipulator, and realize automatic cleaning.
Laser Power： 500W Multi Mode
Laser Wavelength: 1080+-10nm
Laser Working Mode: Pulsed
Pulse Width: 10-500ns
Frequency Range: 1-1000kHz
Fiber Cable Length:10m
Adjustable Scanning Range: 10-130mm (According to lens, 160/210/300 is optional)
Cooling Method : Water Cooling
Working Voltage: AC 220V+-10%
Power Consumption: <4KW
Anti-Reflection Protection : Yes
Operation Temperature: 0~35℃
Operation Humidity: <80%
Machine Dimension: 1010*570*1010mm
Net Weight: 170kg
Pulse Laser Cleaning Machine 500w Details:
1. With double wobble and a smart cleaning head, the pulse laser cleaner is easy to operate and is in good stability.

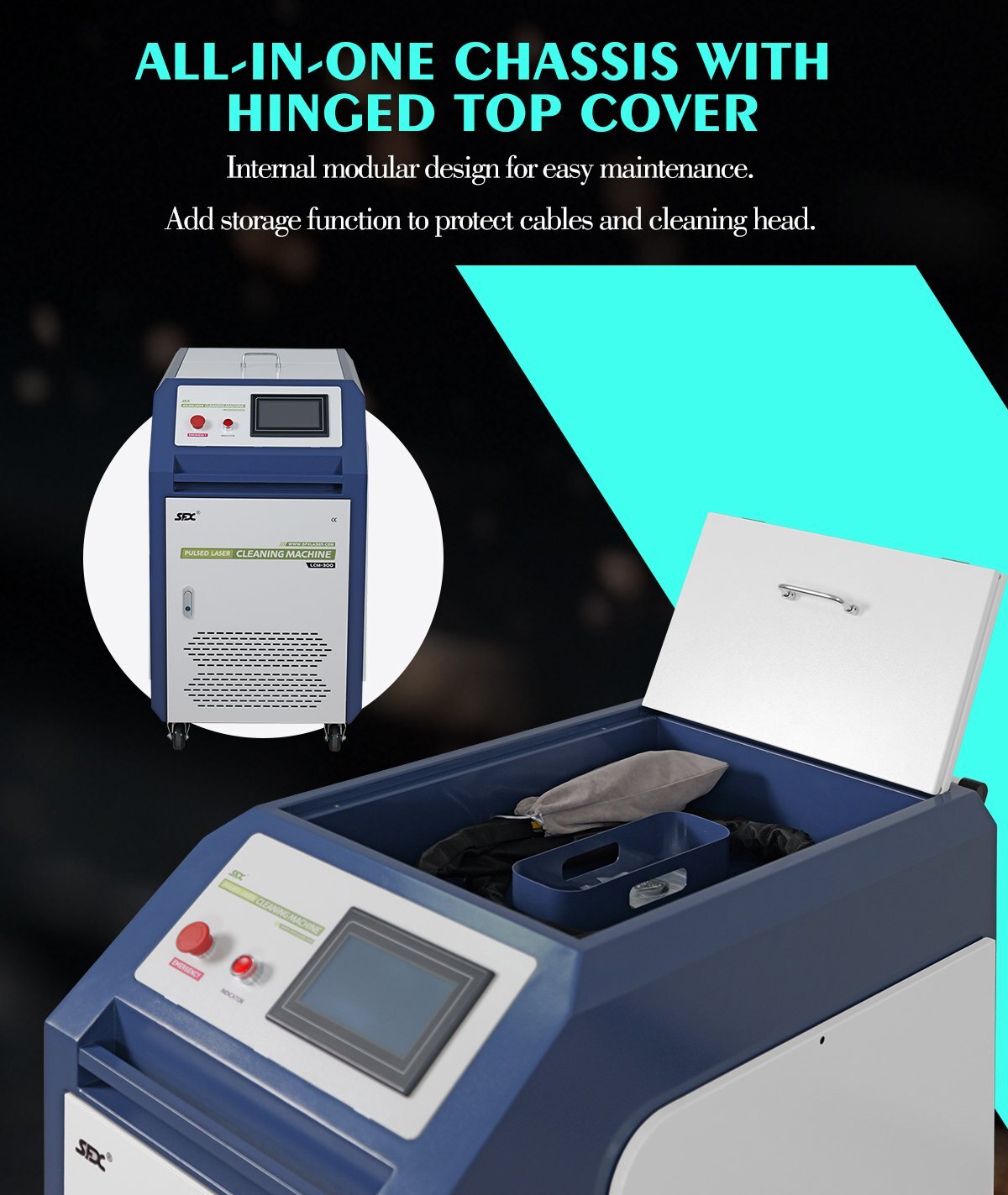

2. Made of thick sheet metal chassis, which is of strong structure, anti-deformation and good heat dissipation
3. 10m fiber cable gives the pulse laser rust removal machine 500w a larger range of doing your cleaning job and is easy to clean anywhere.
4. There is a smart control panel with a full touchscreen operation interface. It supports multilingual and with the process library design, you can set it once and use it at any time.
5. It has neat wiring, the component selection has been scientifically calculated and the layout is reasonable, it has clear identification and is easy to maintain.
6. There is an air switch with fine manufacturing, which provides solid protection escort for your electricity safety
7. The swivel casters are flexible and durable, they can self-locking and are silent in use.
What problems can the pulse laser cleaning machine solve for you?
1. The cleaning intensity is difficult to control, and it is easy to cause damage to the substrate
2. Unstable cleaning quality and serious residue on the surface
3. Low cleaning efficiency, long processing time and high cost
4. The scope of application is narrow, and it is difficult to be compatible with various materials
5. Serious pollution and high operation risk
6. Difficulty in waste disposal and high risk of worker injury
